SPECIFICATIONS

Application: Thermal Controller,Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Brand Name: NONE

Certification: CE,RoHS,UL

Compatible Batteries: Lead-acid / Gel / Lithium-ion / LiFePO4

Cooling Fan: Intelligent temperature control (On >45°C, Off <40°C)

High-concerned chemical: None

Input Voltage: 12-65V

Max Output Current: 22A

Operating Temperature: -20°C ~ 60°C

Origin: Mainland China

Output Voltage: 24V-88V (Adjustable)

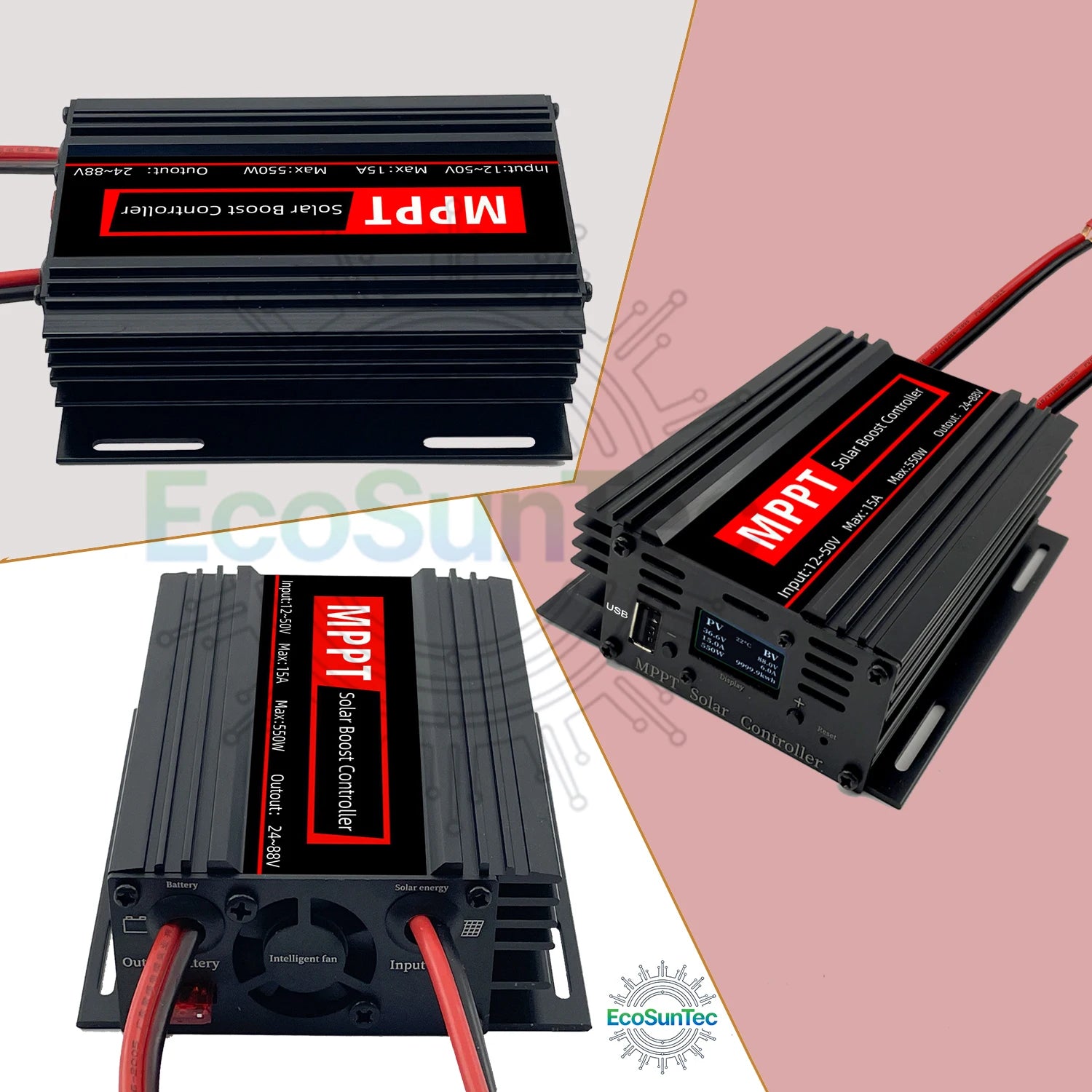

Product Name: MPPT Boost Charge Controller

USB Output: 5V / 2A

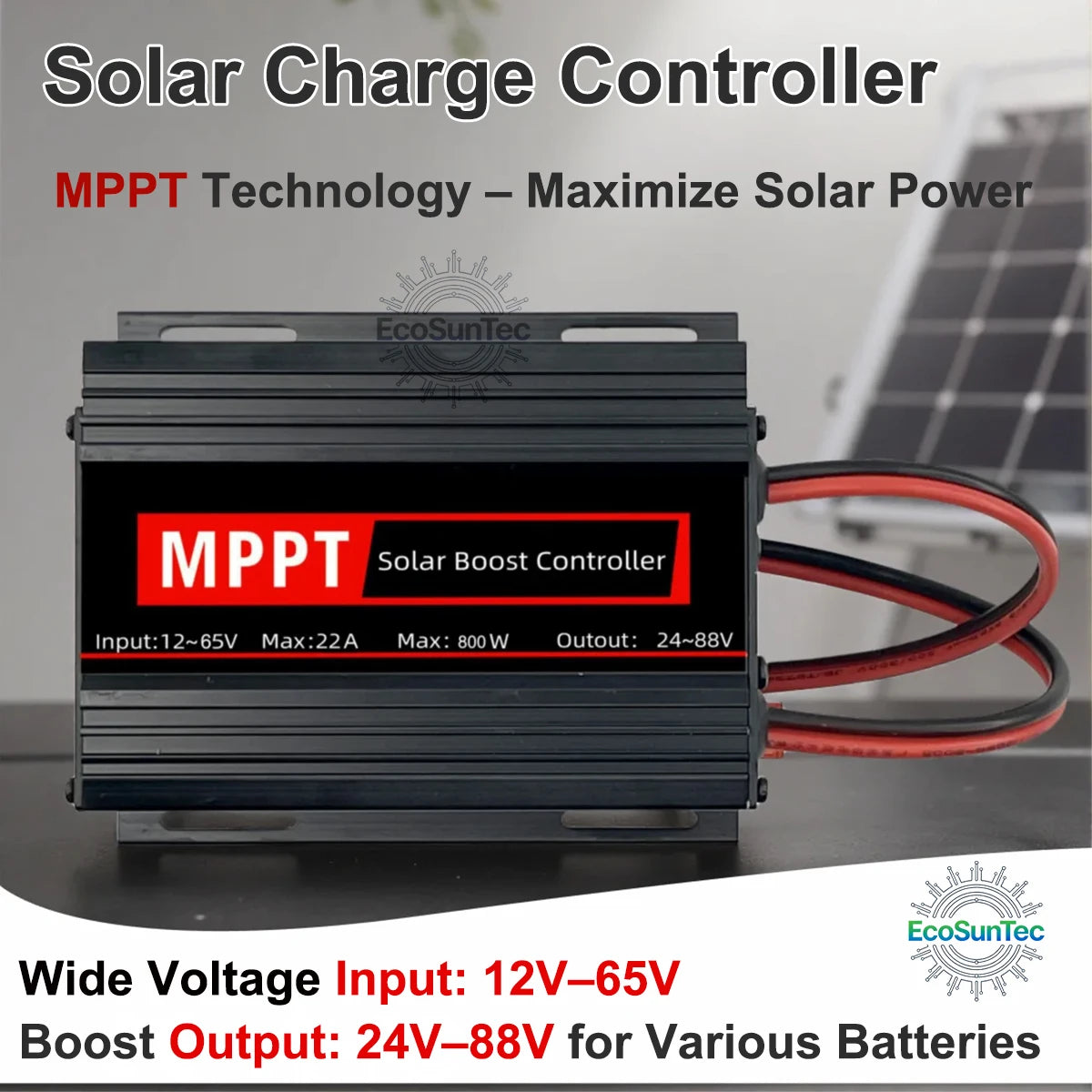

This product is an MPPT (Maximum Power Point Tracking) step-up solar charge controller that boosts lower solar panel voltage to efficiently charge higher voltage battery banks. It supports various battery types, offers up to 98% charging efficiency, and provides comprehensive safety protection and intelligent control features.

I. Key Features

1. High-Efficiency MPPT Technology: Real-time tracking of the solar panel's maximum power point to enhance energy harvesting, with MPPT efficiency up to 98%.

2. Wide Input Voltage Range: Supports 12V–65V solar panel input, compatible with various photovoltaic modules.

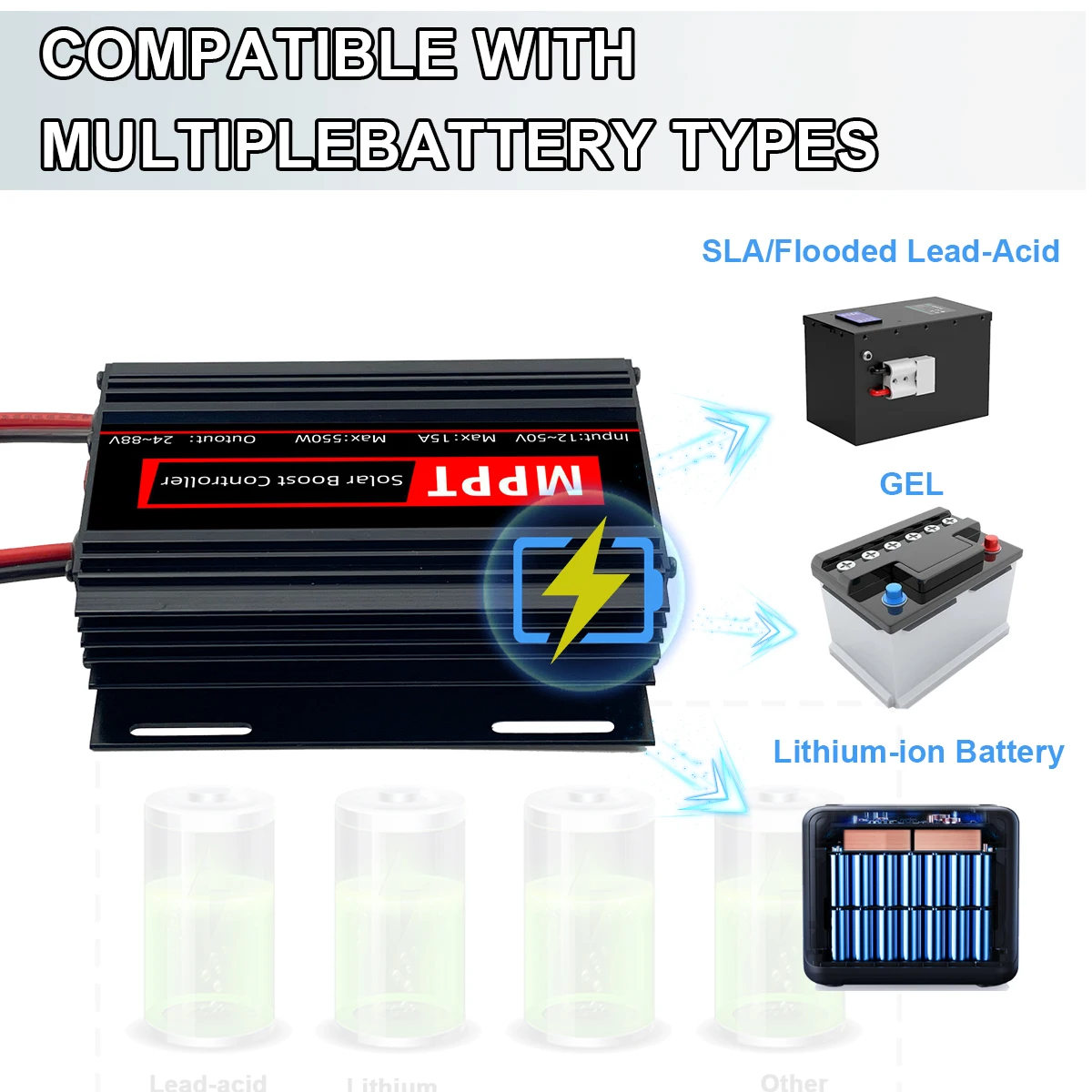

3. Multi-Battery Support: Adjustable charging voltage for lead-acid, LiFePO4, lithium-ion (ternary) and other battery types. Simple button setup.

4. OLED Display: High-definition OLED screen clearly shows PV voltage, current, power, battery voltage, charging current, temperature, and accumulated energy. Clear visibility in both bright and dark conditions.

5. Multiple Safety Protections: Includes overcharge, overcurrent (22A), reverse polarity, short circuit, over temperature (derating above 80°C), and reverse current protection for safe and reliable operation.

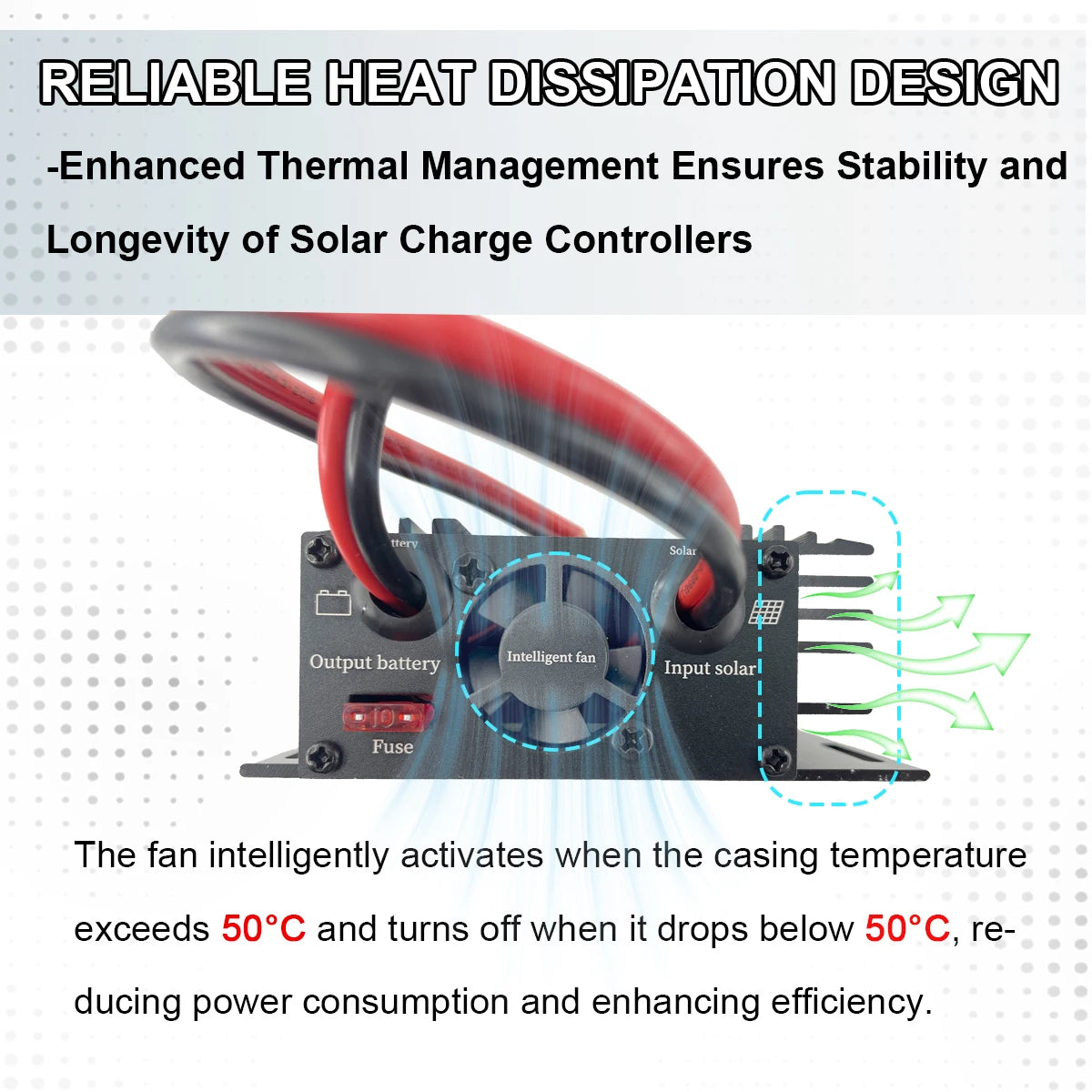

6. Intelligent Temperature-Controlled Fan: Automatically activates when internal temperature >42°C and stops when <40°C, reducing power consumption and noise while improving efficiency.

7. USB Output: Built-in 5V USB port for convenient charging of mobile phones, tablets, and other small devices.

II. Product Specifications

【】Input Voltage: 12V – 65V DC

【】Output Voltage: 24V – 88V DC (adjustable)

【】Maximum Current: 22A

【】Rated input power: 800W

【】USB Output: 5V / up to 2A

【】Compatible Battery Types: Lead-acid (sealed/flooded), LiFePO4, Lithium-ion (ternary), Gel, etc.

【】Conversion Efficiency: ≥98% (MPPT)

【】Operating Temperature: -20°C ~ 60°C

【】Display: OLED (voltage, current, power, temperature, energy)

【】Cooling: Natural convection + intelligent fan (on >42°C, off <40°C)

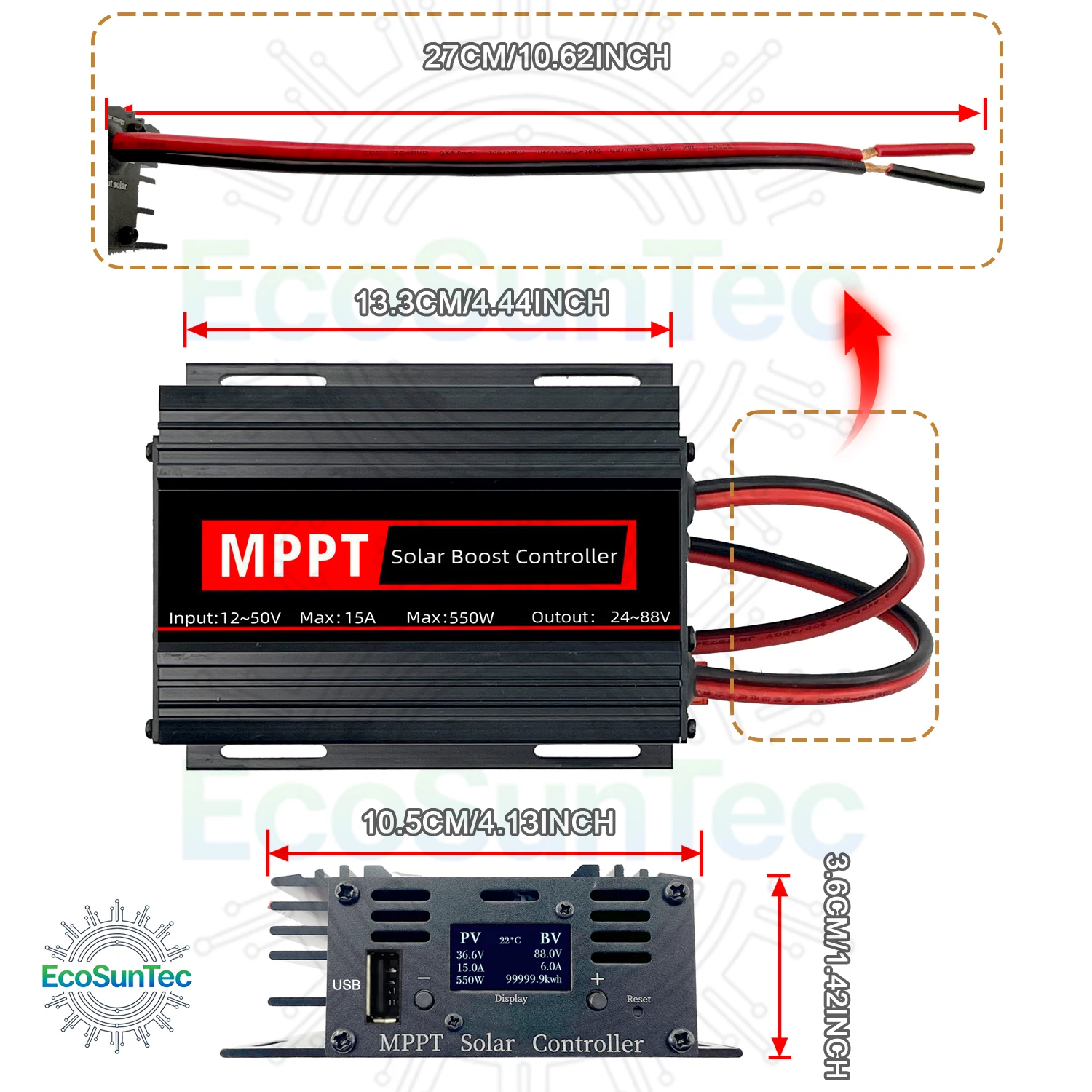

【】Dimensions: 123 x 86 x 39 mm

【】Weight: 460g

【】Protection Rating: IP30

【】Fuse Recommendation: 15A (slow-blow)

III. Safety Precautions

1. Batteries store significant electrical energy. Short circuits are strictly prohibited. It is recommended to install a slow-blow fuse (sized according to the controller's rated current, e.g., 15A) in the circuit.

2. Batteries may release flammable gases. Keep away from open flames, ensure proper ventilation, and avoid short circuits at terminals. Use insulated tools when handling connections.

3. Keep children away from batteries and the controller.

4. Follow the safety recommendations of the battery manufacturer.

5. Do not mount the controller directly on metal brackets during installation to avoid interference and ensure proper insulation.

IV. Applicable Systems

【】Solar Panel Input: 12V – 65V (Voc up to 65V, recommend operating voltage 12V–60V)

【】Battery Output: 24V – 88V (adjustable to suit 24V, 36V, 48V, 60V, 72V battery banks)

【】Supported Battery Types: Open or sealed lead-acid, LiFePO4, ternary lithium, gel, etc.

V. Operation & Settings

1. System Start: After correct connections and sufficient sunlight, the OLED screen lights up and the controller begins MPPT charging.

2. Setting Charging Voltage: Press and hold both "+" and "-" buttons simultaneously to enter voltage setting mode. Use "+" and "-" to adjust the charging voltage according to your battery type (refer to the charging voltage table in the manual). The setting is saved automatically after a few seconds.

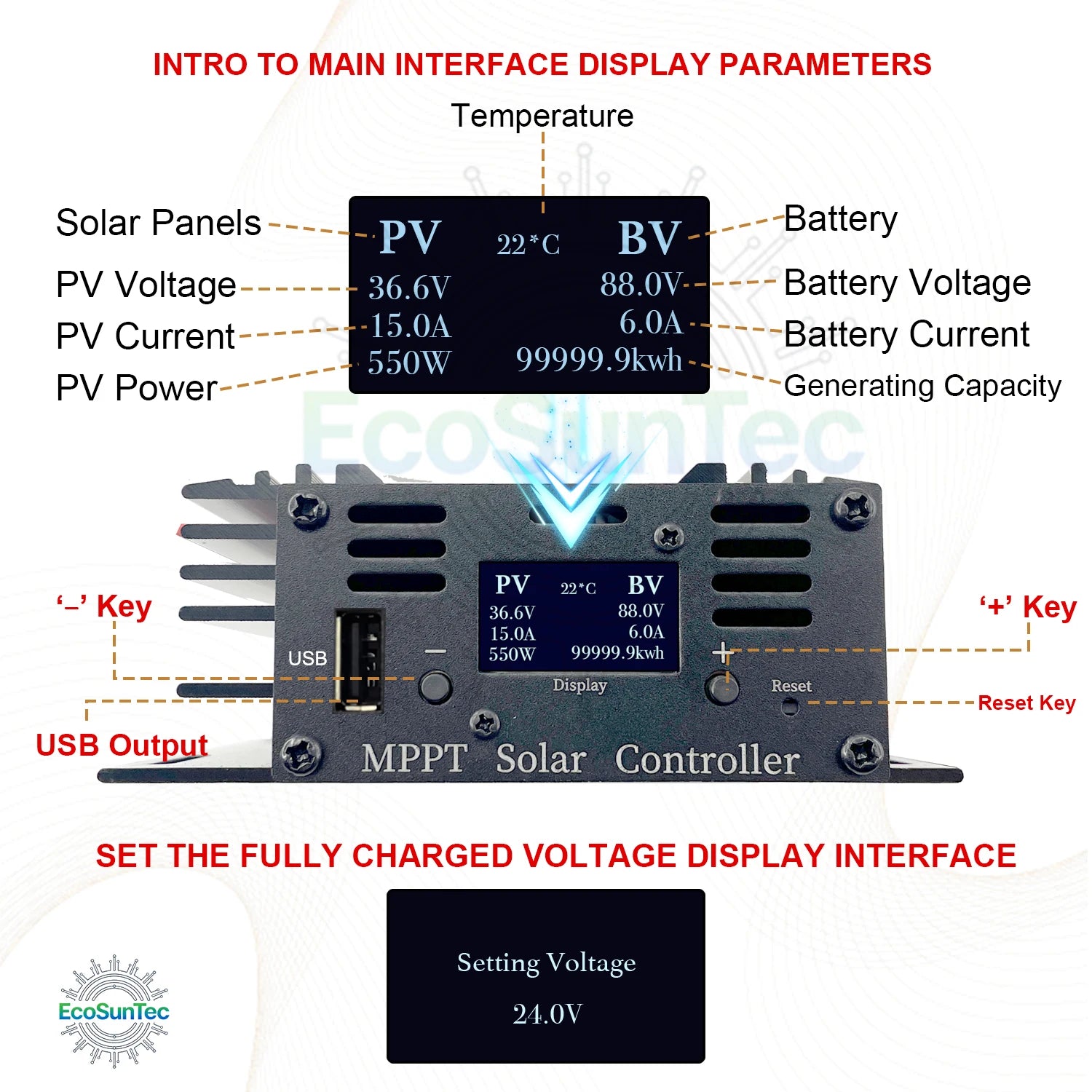

3. Display Information: The OLED cycles through PV voltage, PV current, PV power, battery voltage, charging current, temperature, and accumulated energy (kWh).

4. Reset: If the system malfunctions, press the "Reset" button to restart the controller.

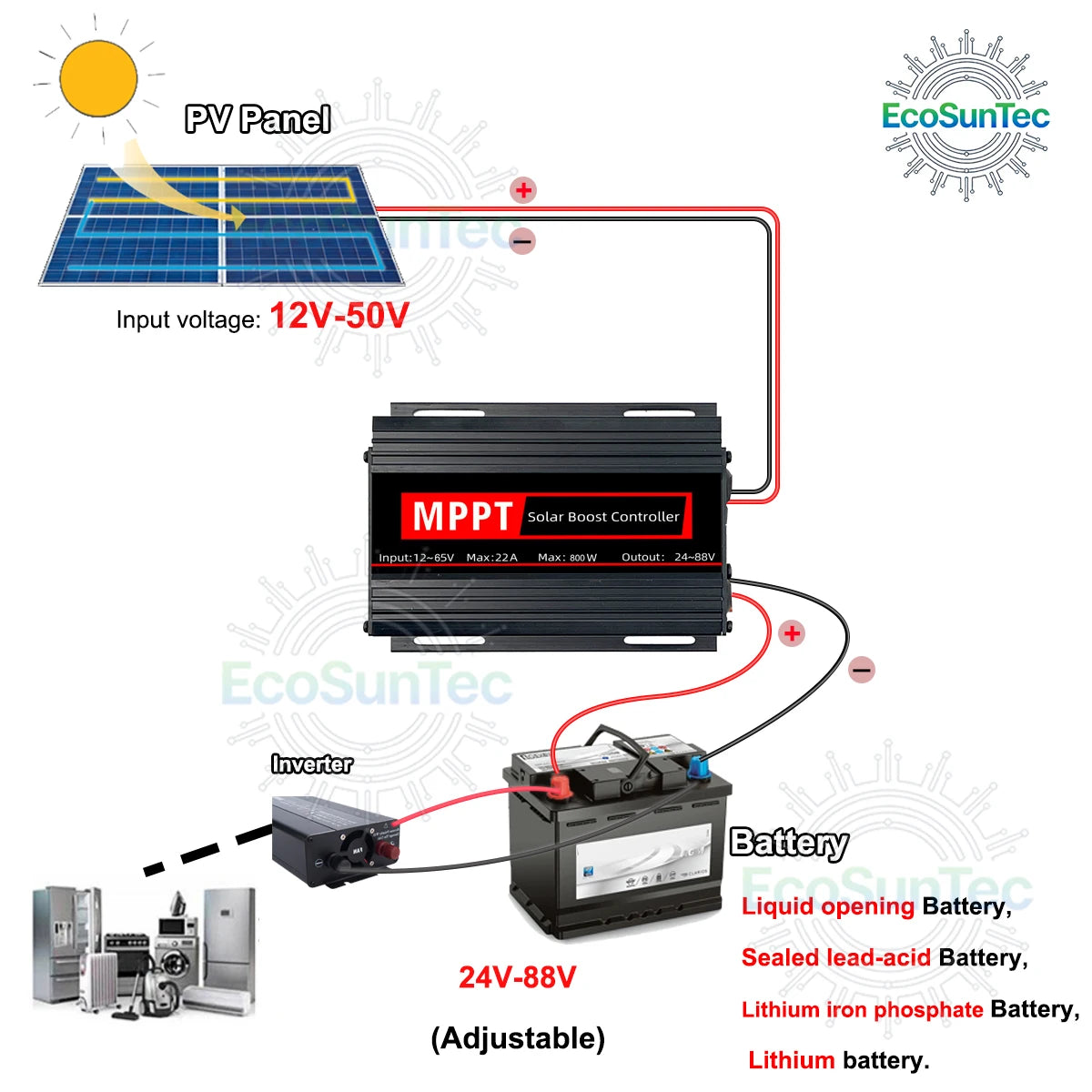

VI. Wiring Recommendations

1. Connect the solar panel first: positive (+) to the solar input "+" terminal, negative (-) to solar input "-" terminal. Then connect the battery: positive (+) to battery output "+", negative (-) to battery output "-". Ensure correct polarity.

2. It is recommended to install switches between the solar panel and controller, and between the battery and controller for safe installation and maintenance.

3. Keep wiring as short as possible to minimize energy loss and voltage drop.

VII. Usage Suggestions

1. Do not exceed the maximum input power: 400W for 18V panels, 800W for 36V panels. For multiple panels, connect in series or parallel appropriately while staying within the voltage and current limits.

2. Install the controller in a well-ventilated area to ensure proper heat dissipation. Avoid direct sunlight and moisture.

3. For battery longevity, ensure the battery is fully charged at least once a month. The system design should allow sufficient solar energy to meet load demands and fully charge the battery.

4. Use the recommended fuse rating (15A slow-blow). Never replace a fuse with a wire or higher-rated fuse.

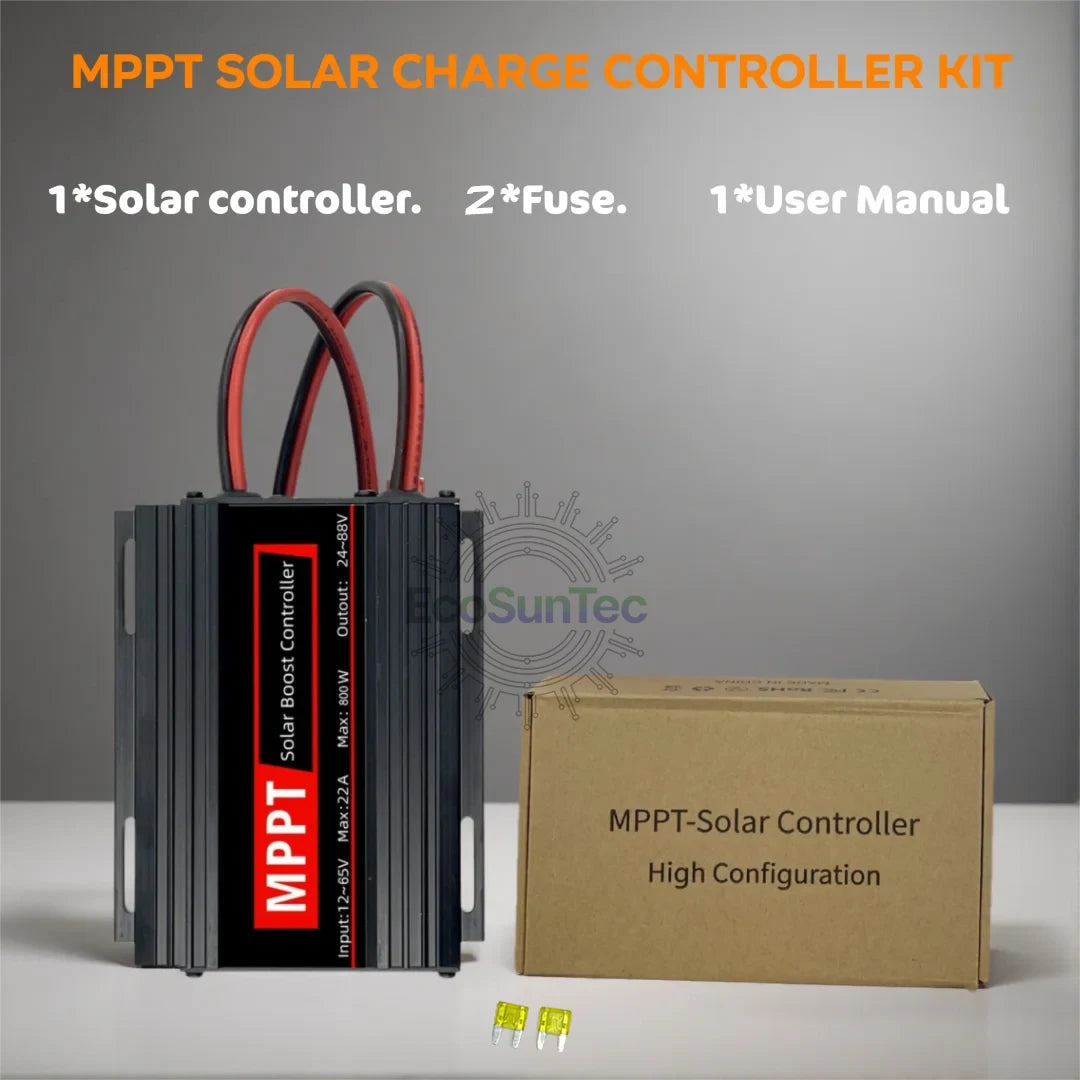

VIII. Package Contents

【】1 x MPPT Solar Boost Charge Controller

【】2 x Fuses

【】1 x User Manual
