SPECIFICATIONS
Brand Name: soecopo
Choice: yes
Controller Current: 100A
Controller Voltage: 12V/24V Detection
Conversion Efficiency: 0.9
High-concerned chemical: None
Inverter Input: DC12V
Inverter Output: AC110V/220V
Origin: Mainland China
Output Frequency: 50Hz/60Hz
Rated Power: 650W
Solar Panel Output 1: DC18V
Solar Panel Output 2: USB 5V
Solar Panel Size: 280mm*280mm
Total weight: 1900g
Voltage: 50V AC / 75V DC and above
semi_Choice: yes

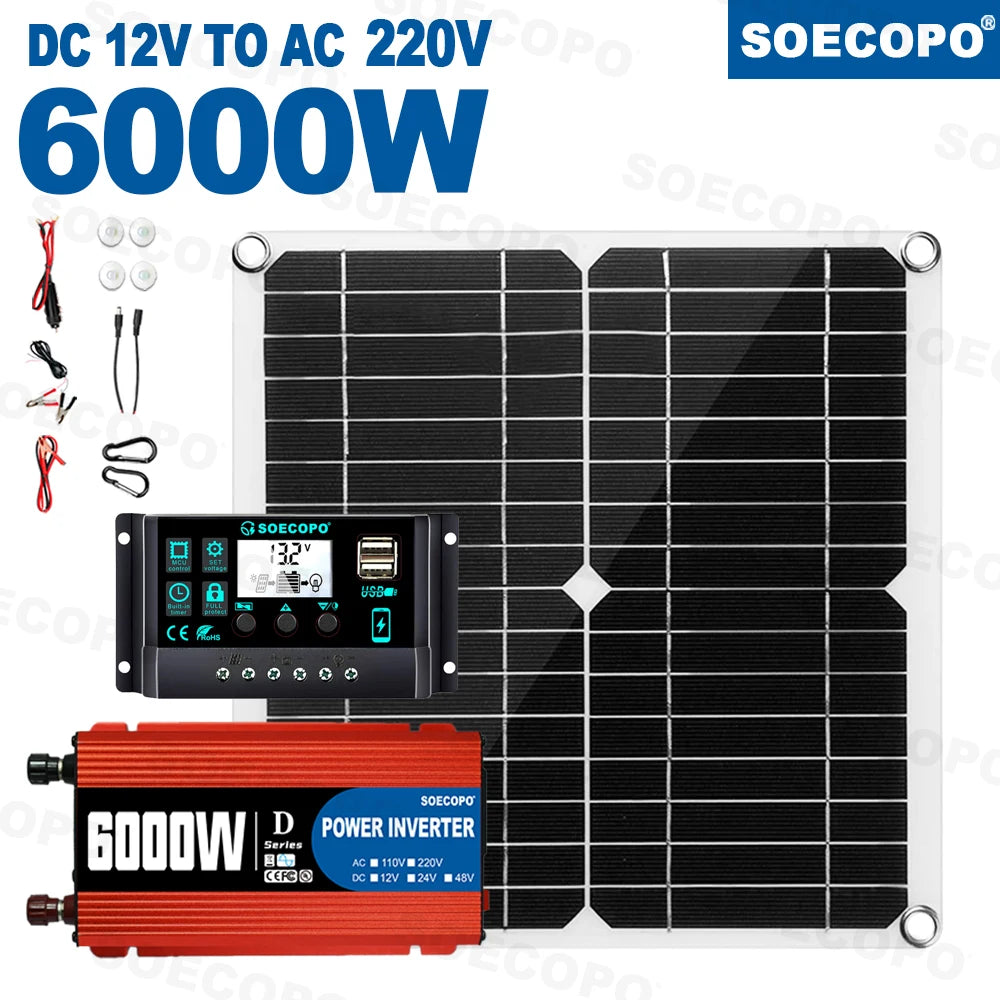

♻SOECOPO Complete Solar System Kit – Fuel Your Off-Grid Life with Steady, Eco-Friendly Energy
If you have any questions, you can contact the store's customer service,and we'd be happy to assist you.

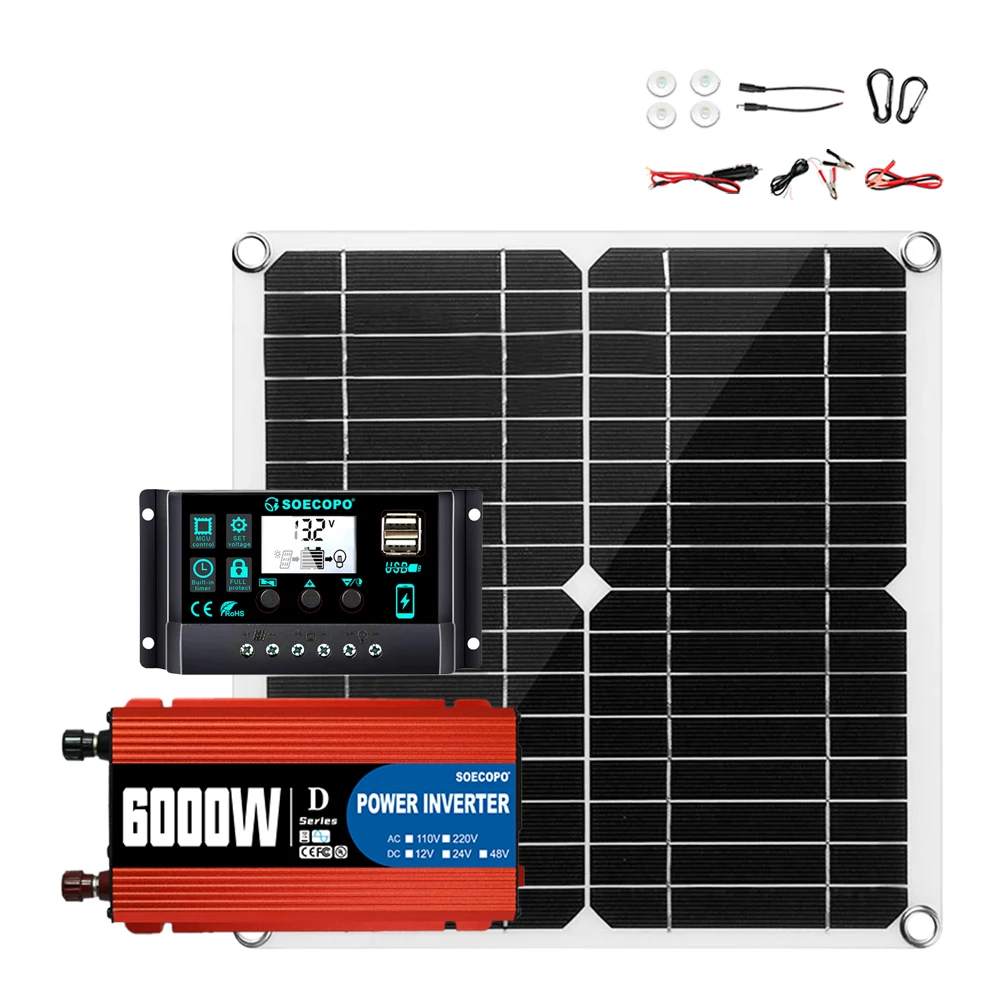

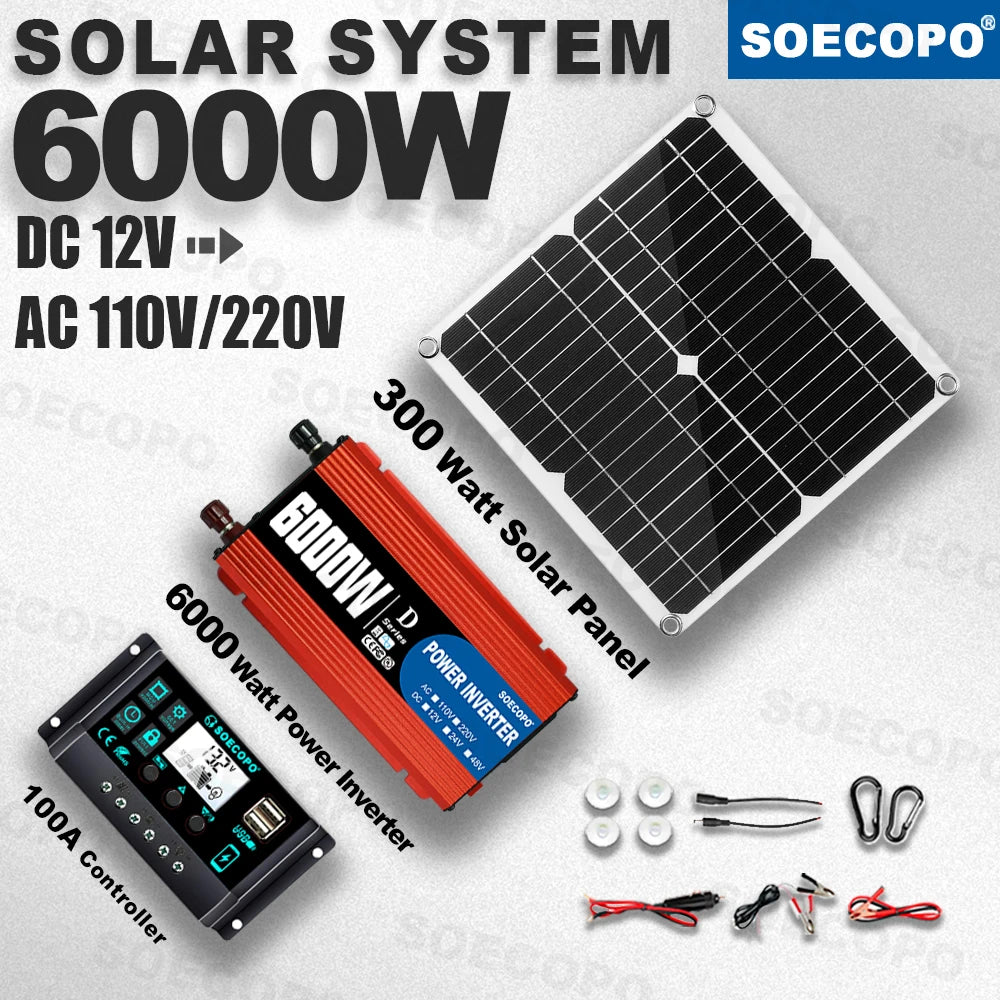

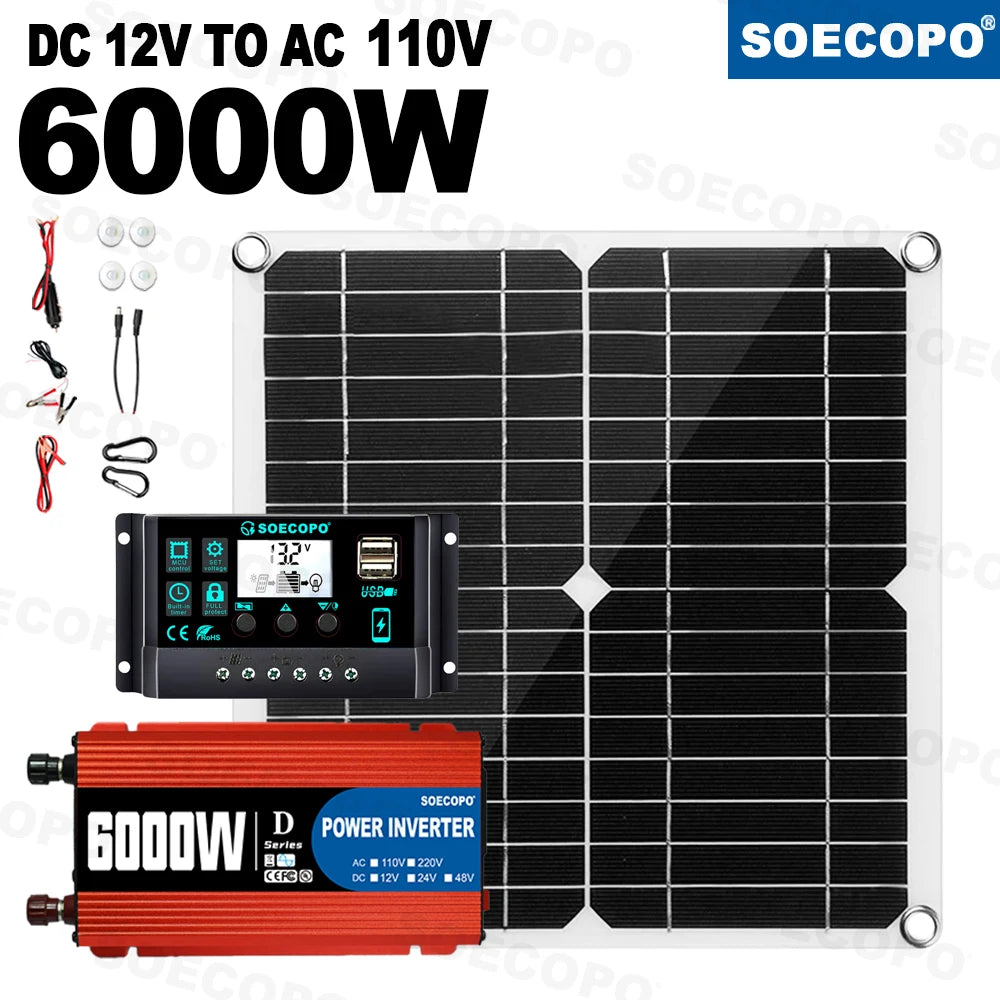

Package list
✅Solar Panel ×1
✅SOECOPO Charge Controller ×1
✅Inverter ×1
✅Accessories:
（1）Controller Alligator Clips ×1
（2）Inverter Alligator Clips ×1
（3）DC Cables (Red/Black) ×2
（4）Carabiners ×2
（5）Suction Cups ×4
（6）Car Inverter Cable ×1
（7）User Manual ×1
⚠️ Batteries not included (user-provided).
📏 Detailed specifications
What are the parameters of each component ❓

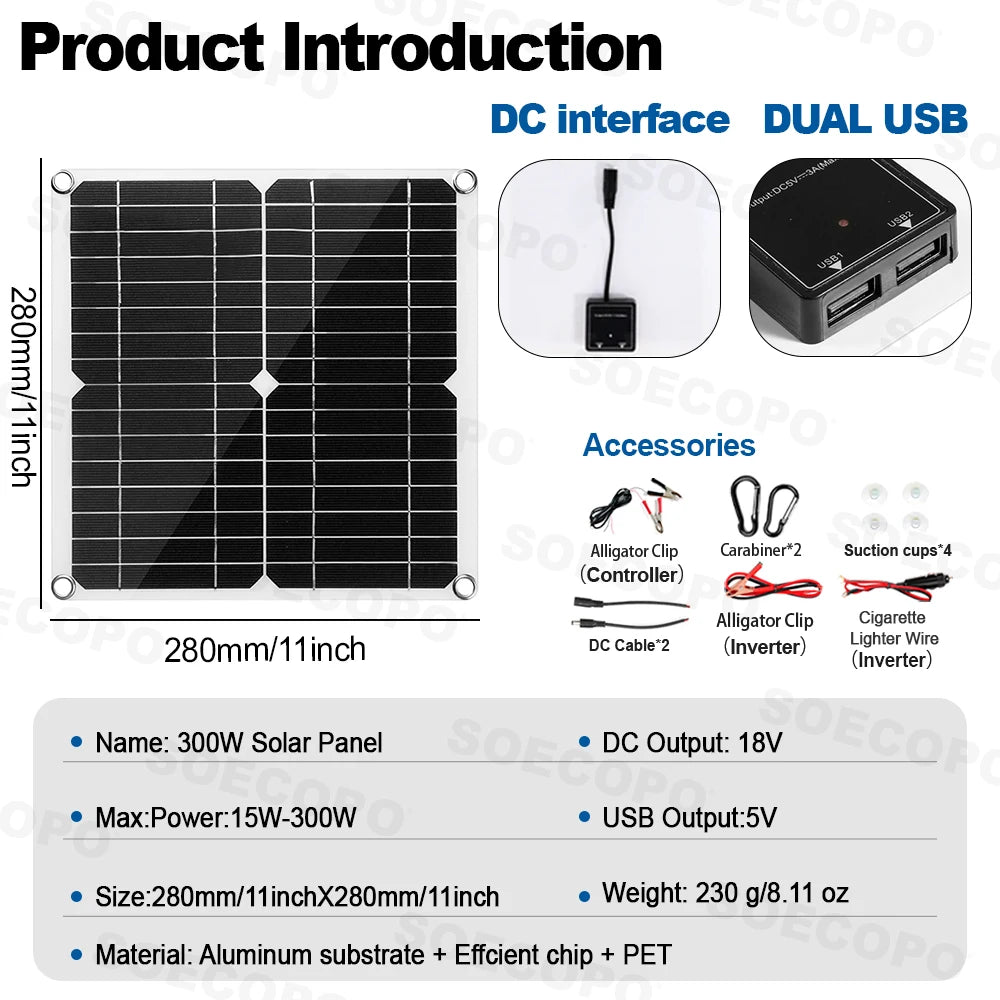

🌞 Solar panels
🔋 Maximum power: 15W-300W
📏 Size specification: 280mm/11inch × 280mm/11inch
📦 Weight: 230g/8.11oz
⚡ DC output: 18V
🔌 USB output: 5V
🧱 Material: Aluminum substrate+high-efficiency chip+PET

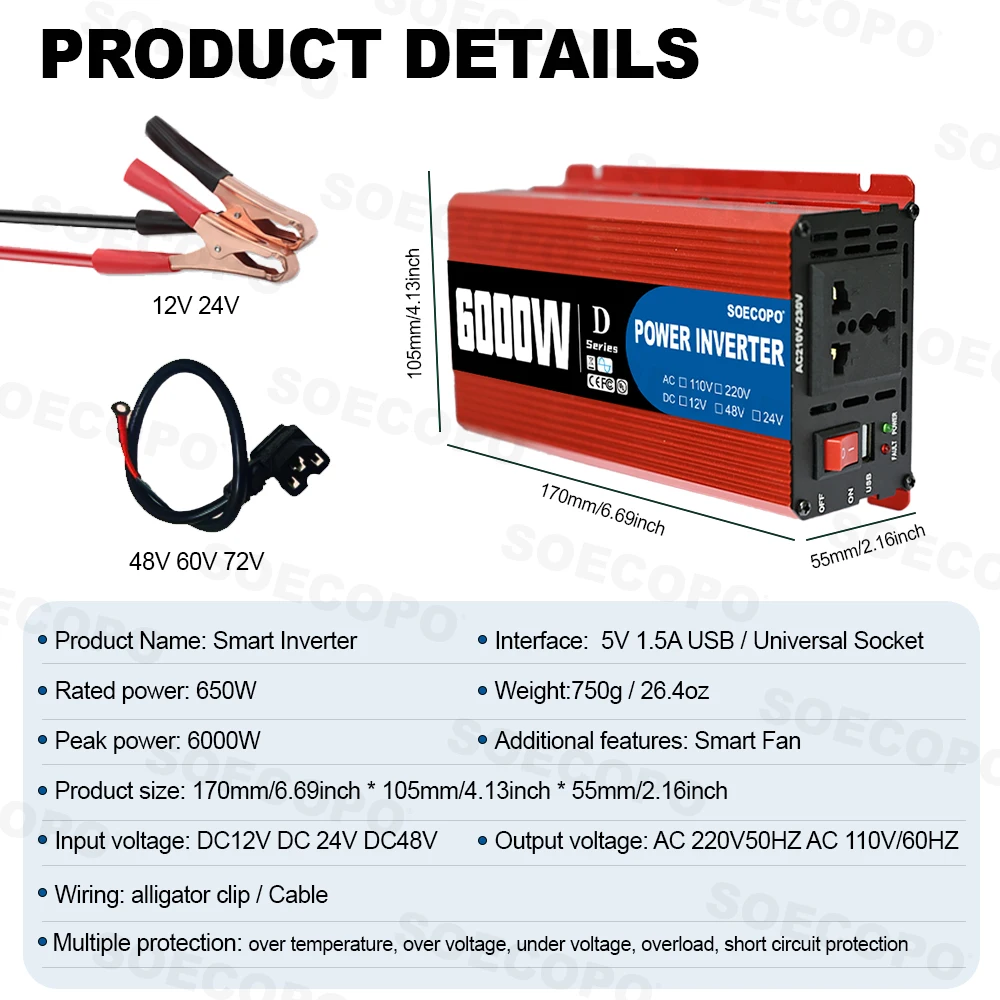

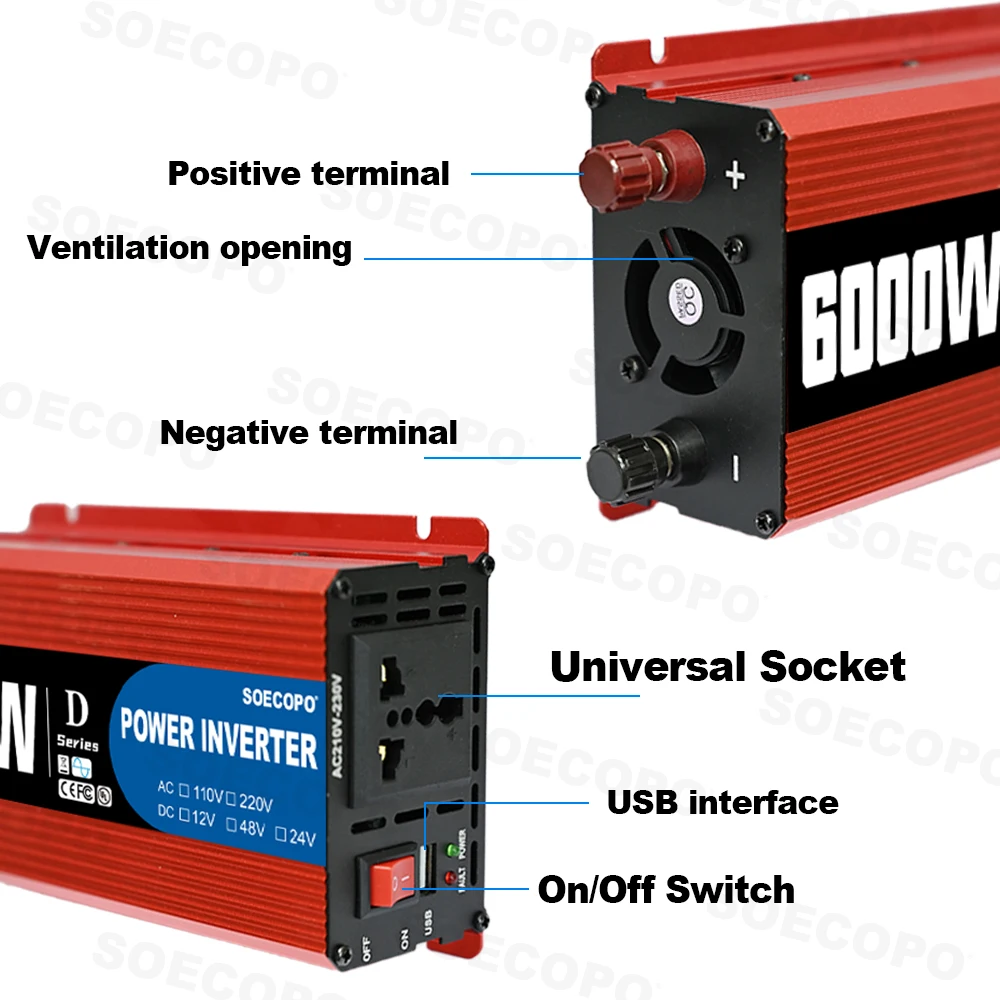

🔌 Efficient inverter: expert in power conversion
✅ Powerful power: rated 650W/peak 6000W, with no pressure for laptops/fans/small appliances
✅ Wide voltage compatibility: DC12V input+AC110V/220V output, compatible with domestic and foreign electrical appliances

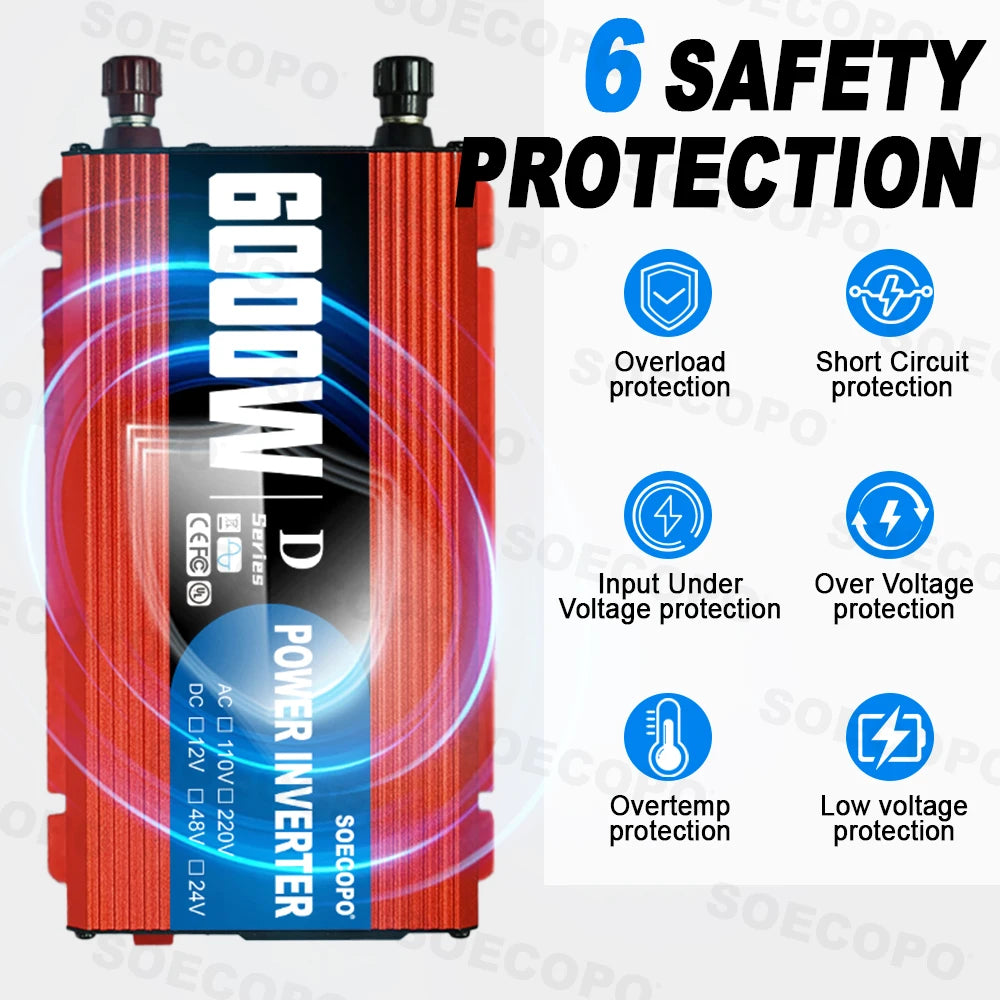

✅ Six fold protection: overload/short circuit/over temperature protection, stable and reliable operation

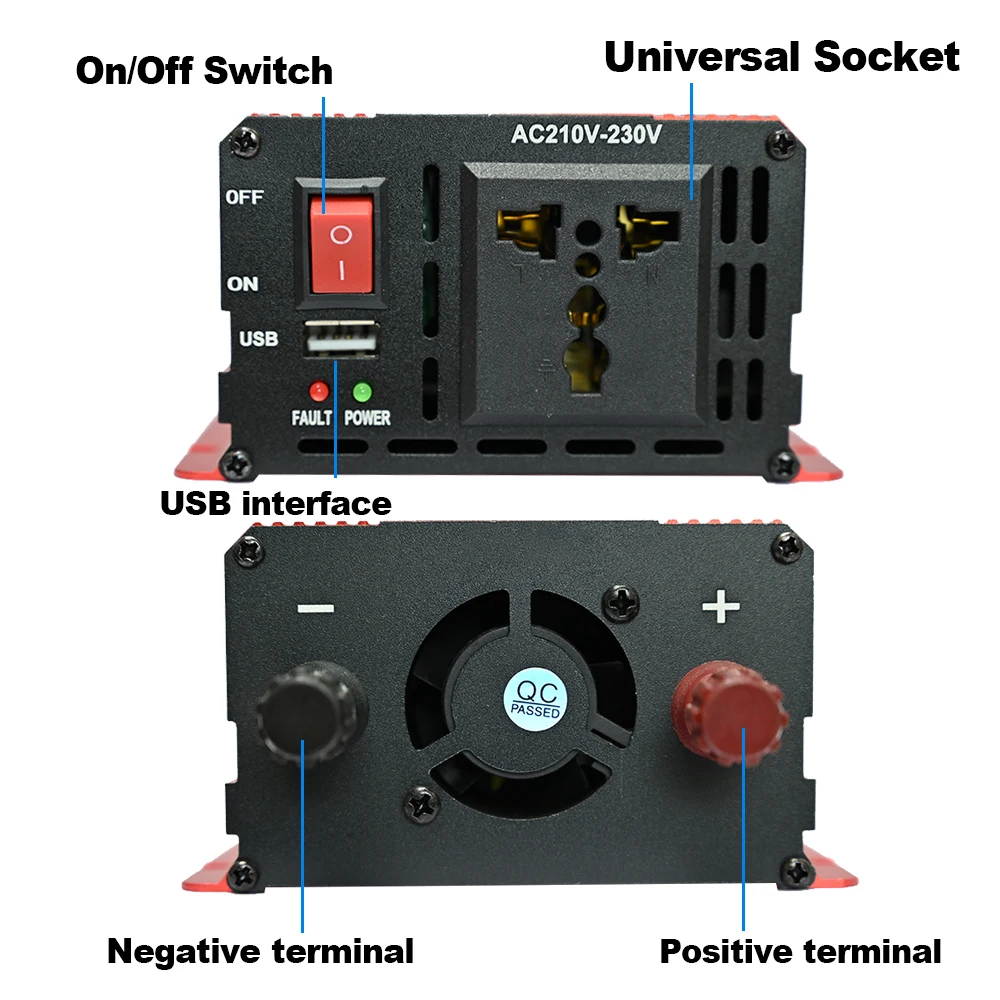

✅ Detail design: Intelligent fan cooling (low noise)+USB/universal socket, plug and play

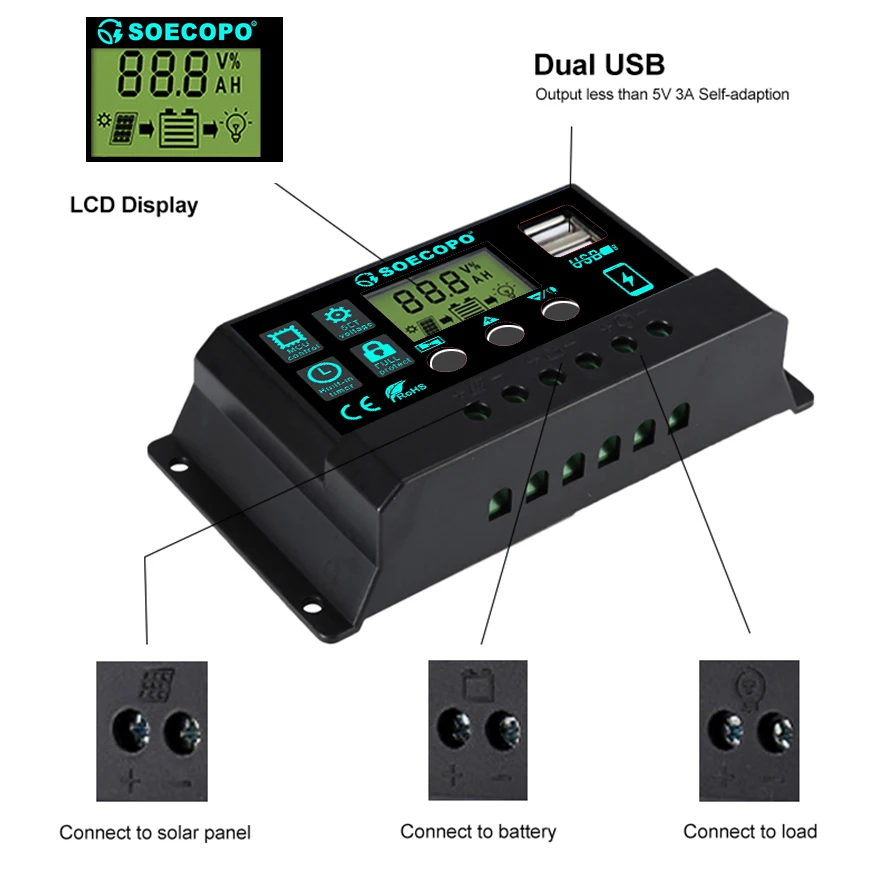

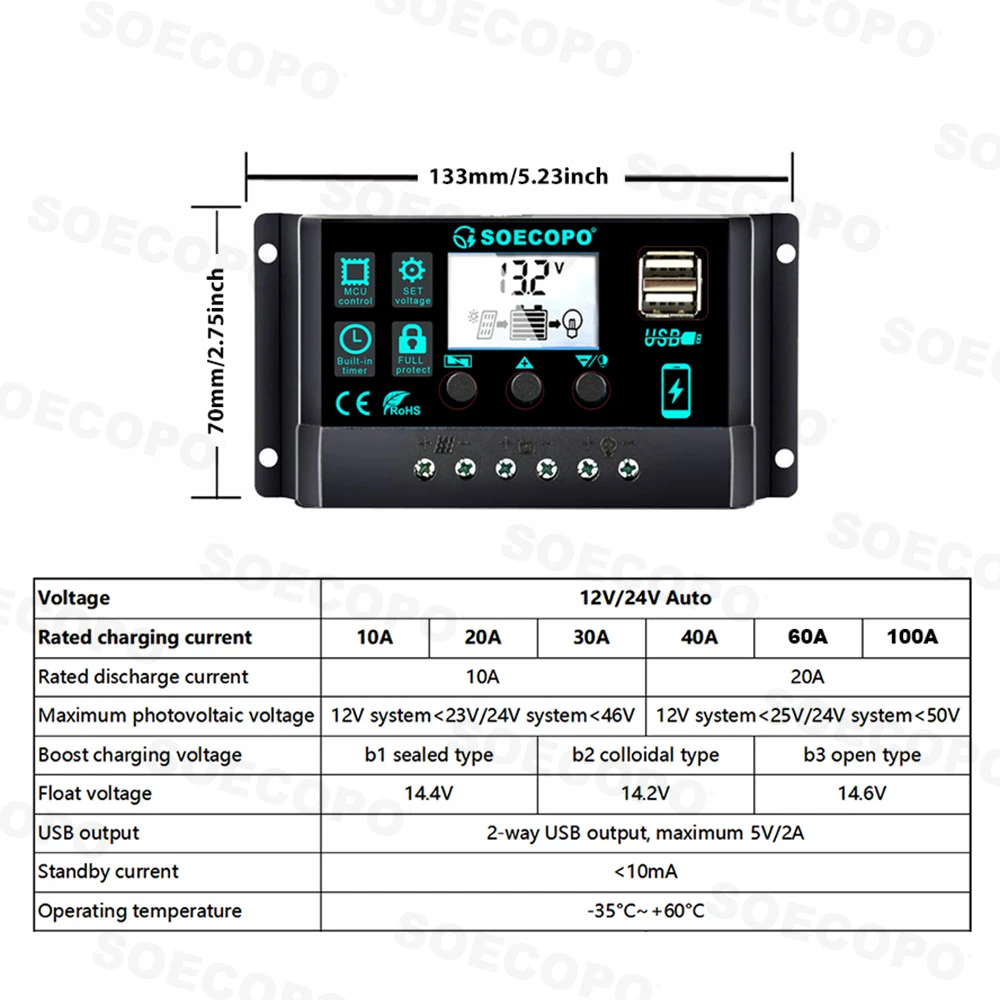

📟 ️ controller:
🔋 Voltage adaptation: automatic recognition of 12V/24V
⚡ Rated charging and discharging current: 100A
🔌 USB output: 5V/2.1A × 2
🌙 Standby power consumption: ≤ 0.5W
🌡️ Working temperature: -35 ℃ to+60 ℃

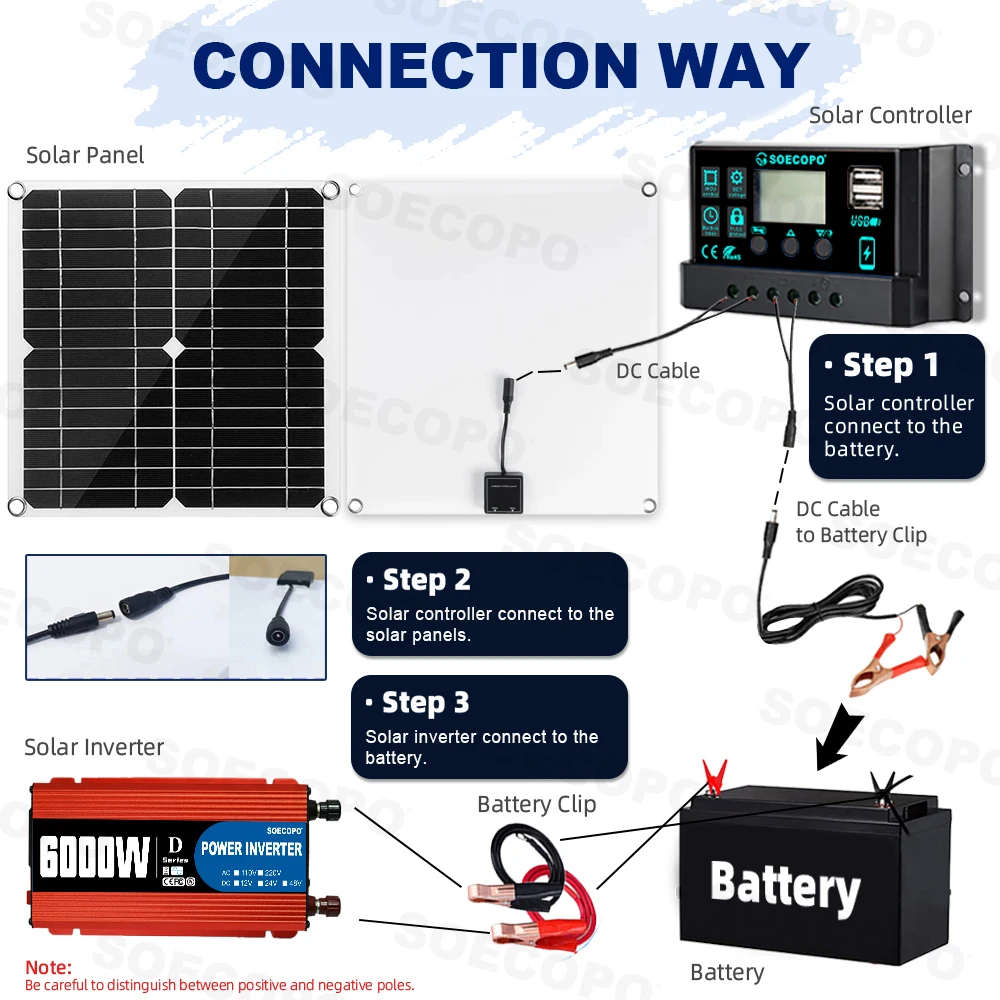

🔌 3 Simple Connection Steps
Step 1: Connect the solar controller to the battery.
Step 2: Connect the solar panel to the solar controller.
Step 3: Connect the power inverter to the battery.
⚠️ Note: Double-check positive/negative polarity to avoid short circuits.

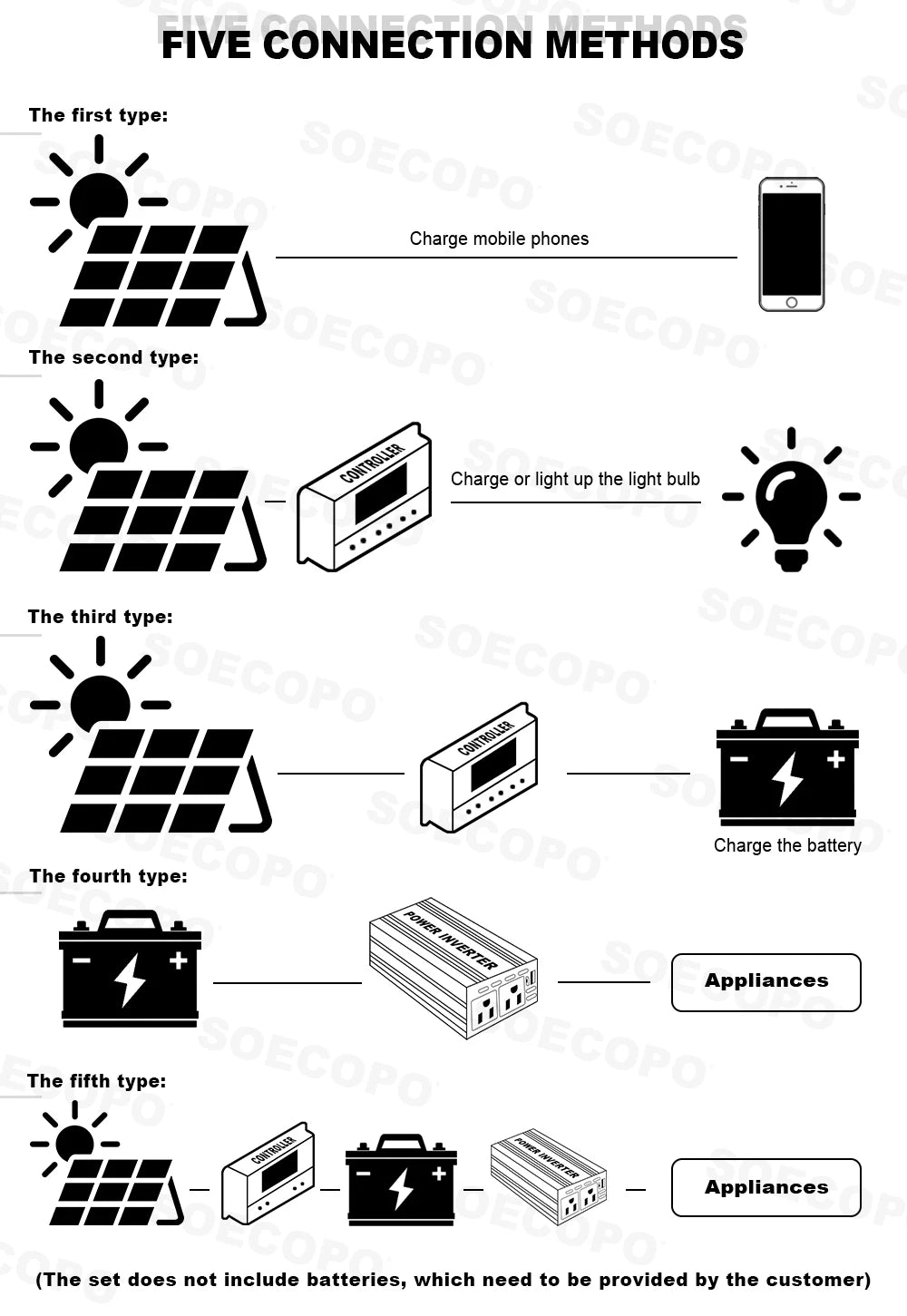

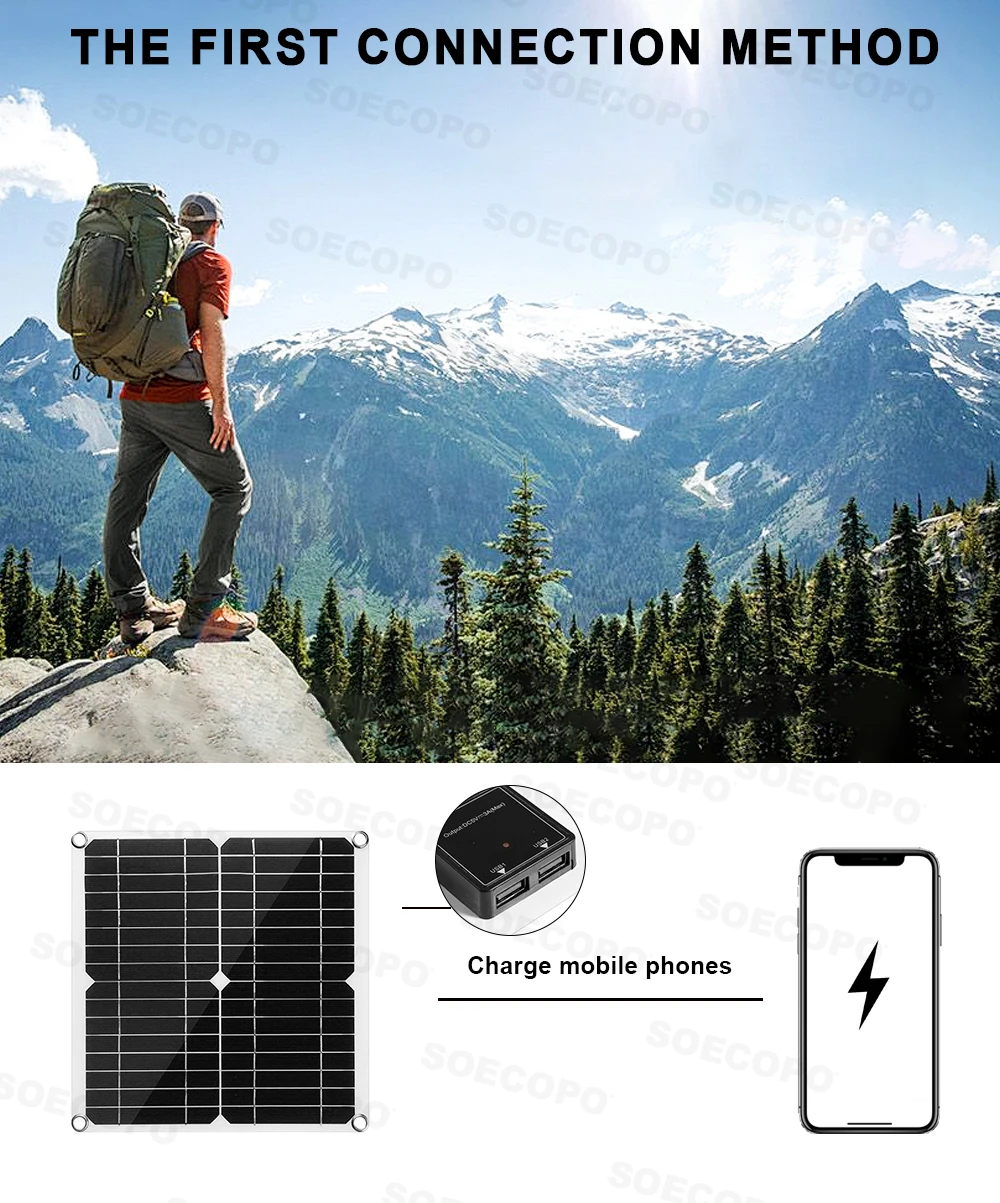

🔌 Connection Method : First Connection Method (Solar Panel + Charging Device + Mobile Phone)

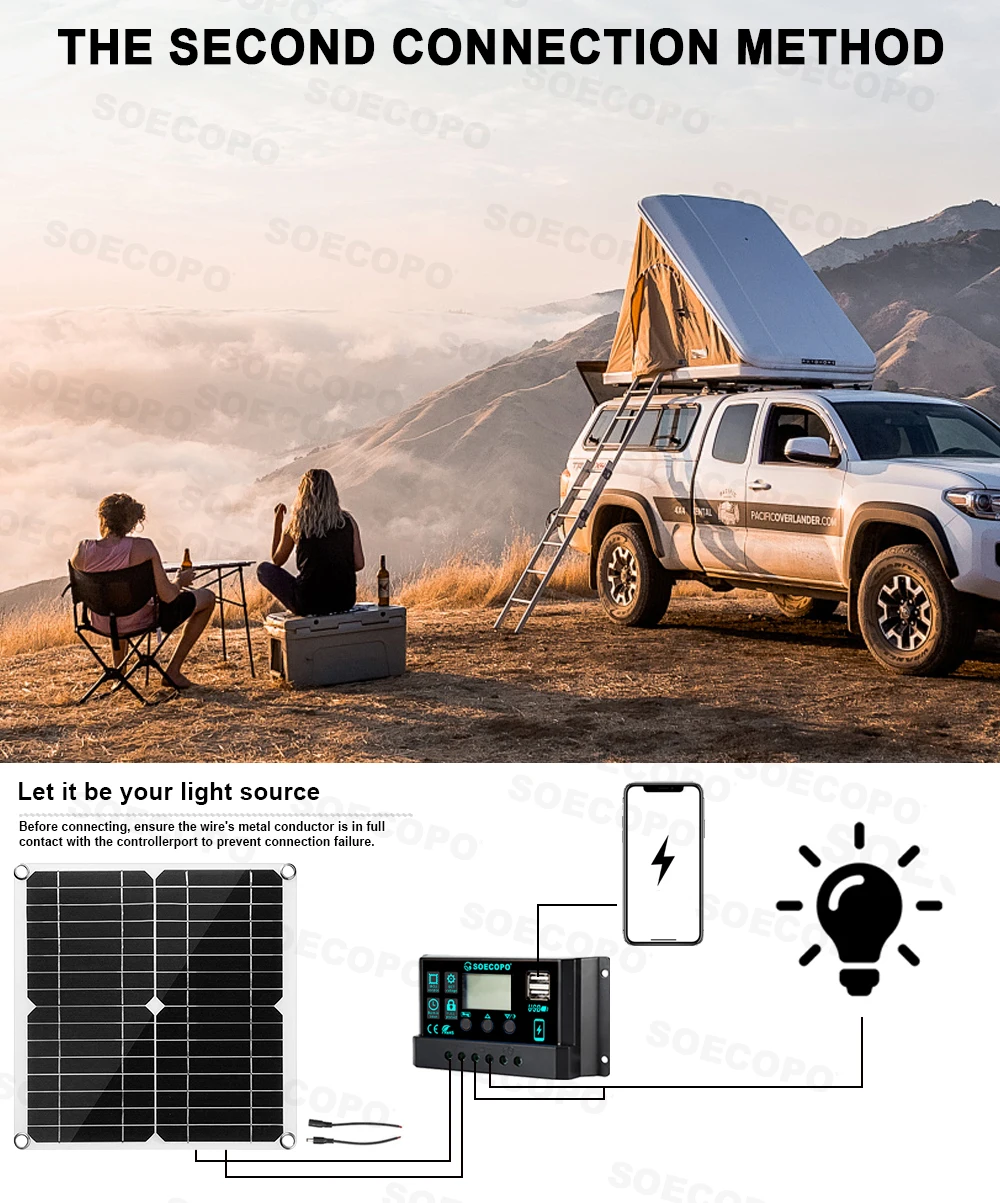

🔌 Connection Method : Full System Setup (Solar Panel + Charge Controller + Loads (Phone & Light Bulb))

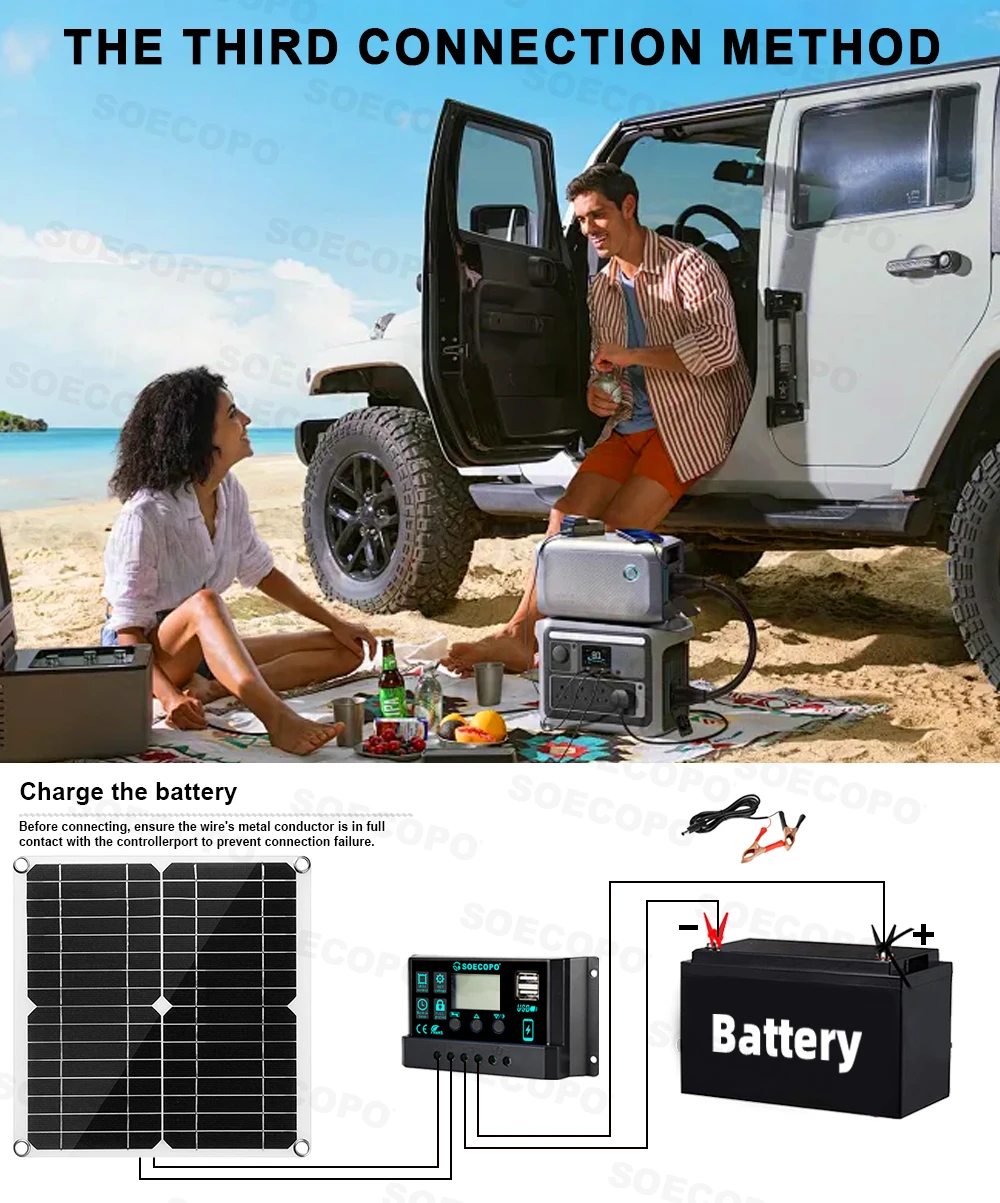

🔌 Connection Method : Full System Setup (Solar Panel + Charge Controller + Battery)

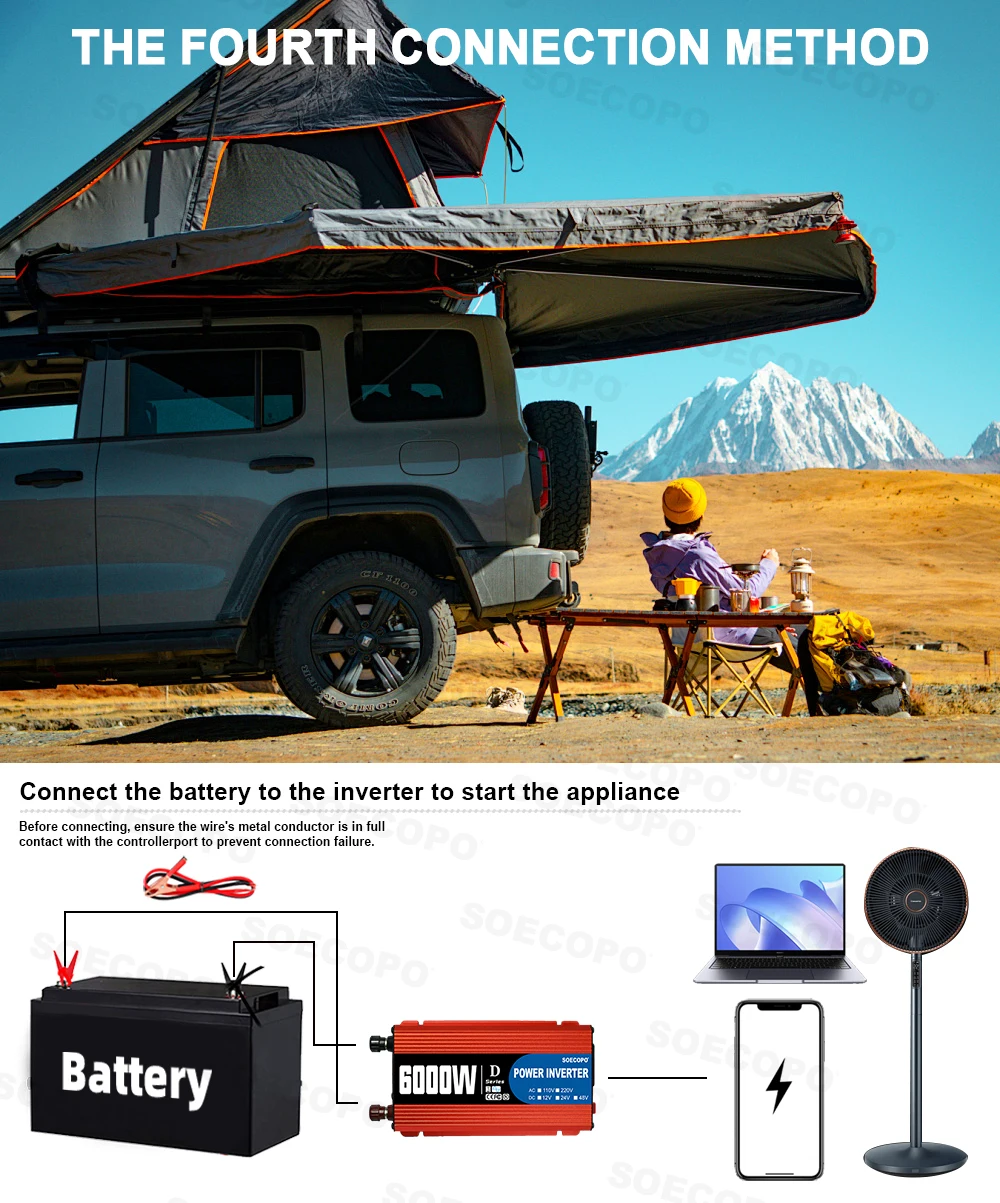

🔌 Connection Method : Full System Setup (Battery + Inverter + Household Appliances)

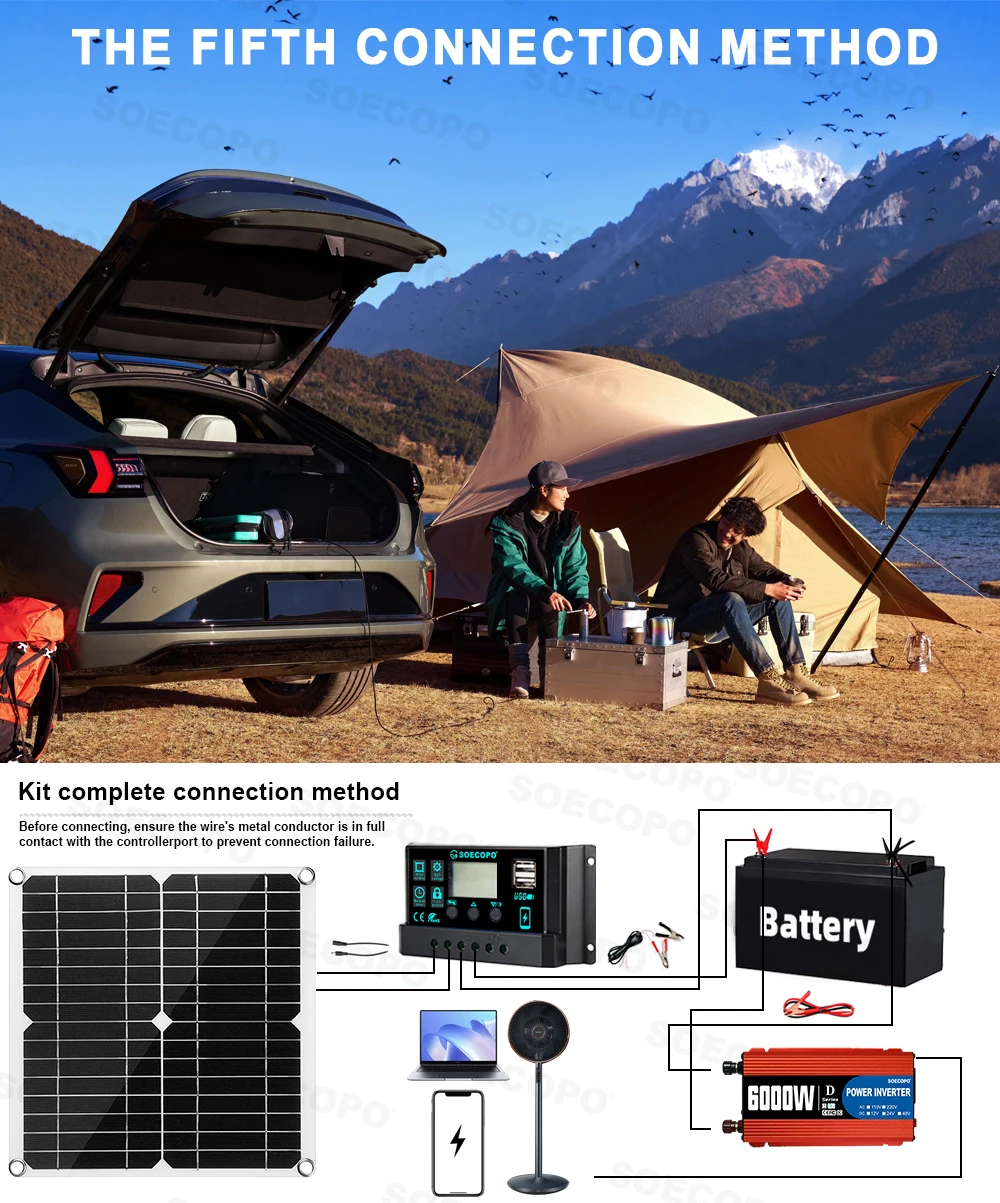

🔌 Connection Method : Full System Setup (Solar Panel + Charge Controller + Battery + Inverter + Household Appliances)
⚠️ Important Notes
1.Do not expose the solar panel to direct fire or high temperatures above 85°C.
2.Ensure all connections are tight and correct to avoid short circuits.
3.The inverter is for indoor or well-ventilated use only; do not operate in a sealed enclosure.
4.Disconnect all power sources before performing maintenance or modifications.
5.Keep the system away from children and pets to prevent accidental contact.
🔋Choose the right battery
Choosing the right battery is very important for your inverter to work safely and stably.
1. Selection Principle
The actual output power of the inverter is determined by the discharge capability of the battery.
If the battery capacity is too small, the following problems will occur:
⭐Low voltage alarm
⭐Automatic shutdown
⭐Unable to drive loads
⭐Cannot reach rated power
2. How to calculate the required battery current
The maximum current the battery needs to supply depends on your inverter power and battery voltage.
Formula:
Discharge Current (A) = Inverter Rated Power (W) ÷ Battery Voltage (V) ÷ 0.85
3. Suggested Battery for Common Inverters
For 12V Batteries
⭐500W inverter → Recommended battery: 70Ah or above
⭐1000W inverter → Recommended battery: 100Ah or above
⭐1500W inverter → Recommended battery: 150Ah or above
⭐2000W inverter → Recommended battery: 200Ah or above
For 24V Batteries
⭐1000W inverter → Recommended battery: 70Ah or above
⭐1500W inverter → Recommended battery: 100Ah or above
⭐2000W inverter → Recommended battery: 150Ah or above
⭐3000W inverter → Recommended battery: 200Ah or above
4. Important Tips
⭐Insufficient battery capacity will cause low voltage alarm, shutdown or unable to reach full power.
⭐For long life and safe use, do not overload the battery.
⭐If you need help choosing a battery, please tell us your inverter model and load power.
