SPECIFICATIONS
Application: Solar System Controller,Lighting Controller
Brand Name: PowMr
Certification: CE
Charge reconnect: 13.0V
Charing Mode: PWM
Discharge reconnect: 12.6V
Discharge stop: 11.2V
Float: 13.8V
Item: 10a charge controller regulator
Max Input Power: 120W
Maximum Current: 10A
Model Number: 10A-12V
Origin: Mainland China
Waterproof: IP68
Work for: outdoor use
is_customized: Yes
Solar 10A Charge Controller Regulator 12V 24V Waterproof IP68 Without Light and Timer Control Load 24 hours Working Outdoor Use
Item Description:
The CMP-03-Series solar charge controller applies a microchip for intelligent control.The charging efficiency can be highly increased by using dual-mos charging circuit ,compared to normal diode for reserve current protection. The controller can extend the battery life with build-in 4-stage PWM charging program.It is equipped with various of protection function such as over-charge protection,over discharge protection ,over-load protection,reverse current protection.
The Load is working 24 hours
Feature:
1.Build-in industrial micro controller.
2.LED display,auto memory function,IP68 protection.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual MOSFET Reverse current protection ,low heat production
Package Included:
1. 1x 10A Solar Charge and Discharge Controller
Function:
1. Prevent the battery from over charging, over discharging and Reverse discharging to solar panel during nights.
2. Controller will start the lighting system in the evening automatically according to the surrounding luminance.
3. Controller can automatically shut down the lighting system:
A: Automatically shut down the light at dawn when battery is full.
B: Automatically shut down the light when battery is low.
The mode has been set inside the controller before exit the factory.Do ask for further more information from your distributor.
Mode |
Description |
Charge only |
Only use the charge function of the controller. Load output is forever closed |
Light-open+delay |
Load on after sunset and closed after 1-13hour |
D2D |
Dusk to Dawn(have delay) |
System |
Load always output(unless battery is low) |
debug |
Dusk to Dawn(no delay) |
Parameter Table:
MODEL |
CMP-03 10A |
|
Batt voltage |
12V/24V auto adapt |
|
Charge current |
10A |
|
Discharge current |
10A |
|
Max Solar input |
41V |
|
Charge drop |
<0.2V |
|
Discharge drop |
<0.25V |
|
Equalization |
14.8V |
|
Bulk |
14.5V |
|
Acceptance |
14.2V PWM |
|
Float |
13.8V |
|
Charge reconnect |
13.0V |
|
Discharge stop |
11.2V |
|
Discharge reconnect |
12.6V |
|
Self-consume |
<10mA |
|
Voltage of open light |
Solar panel 8V(delay 10s) |
|
Voltage of close light |
Solar panel 8V(delay 60s) |
|
Temperature compensation |
N/C |
|
Operating temperature |
-35~+60 °C |
|
Size/Weight |
82*45*21mm /120g |
|

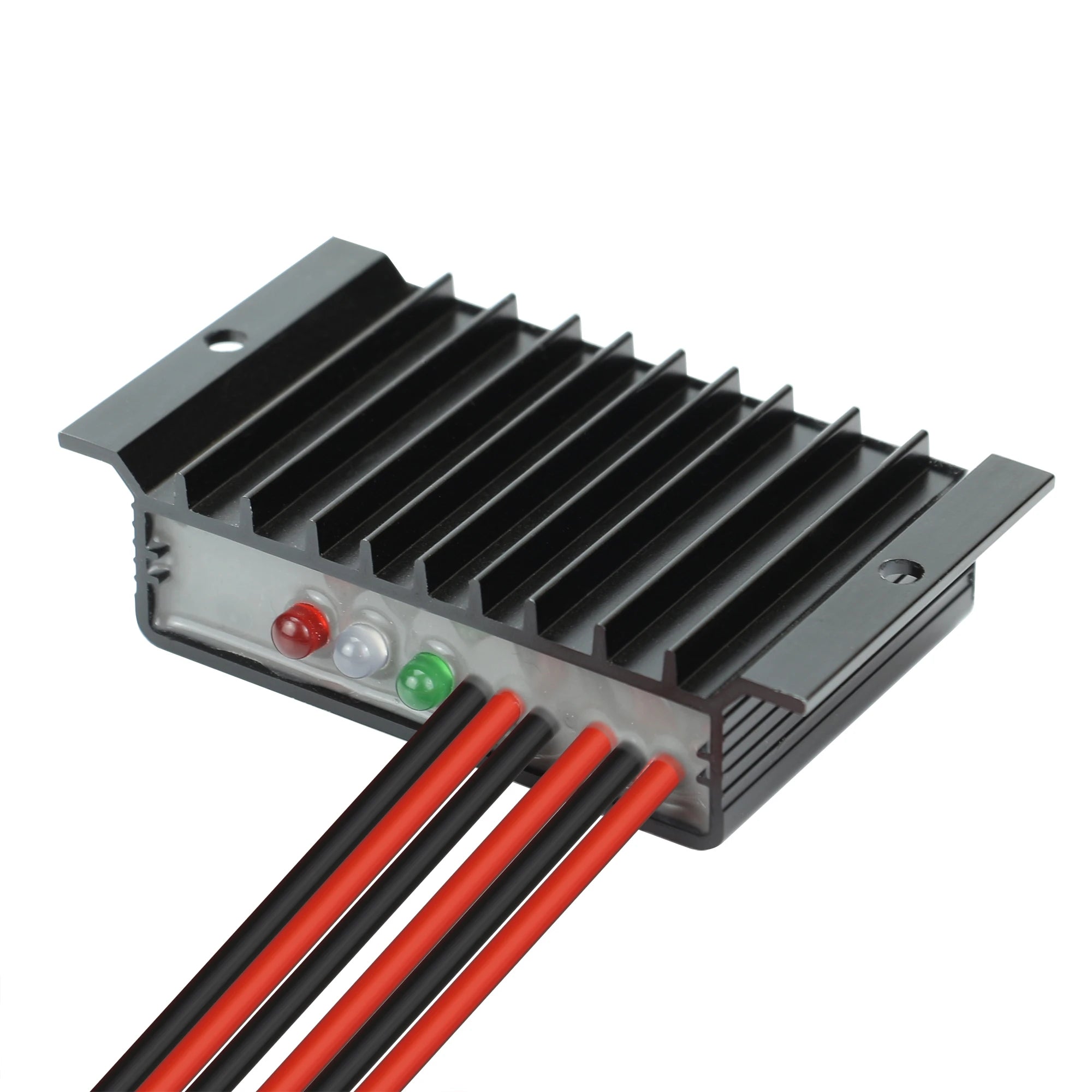

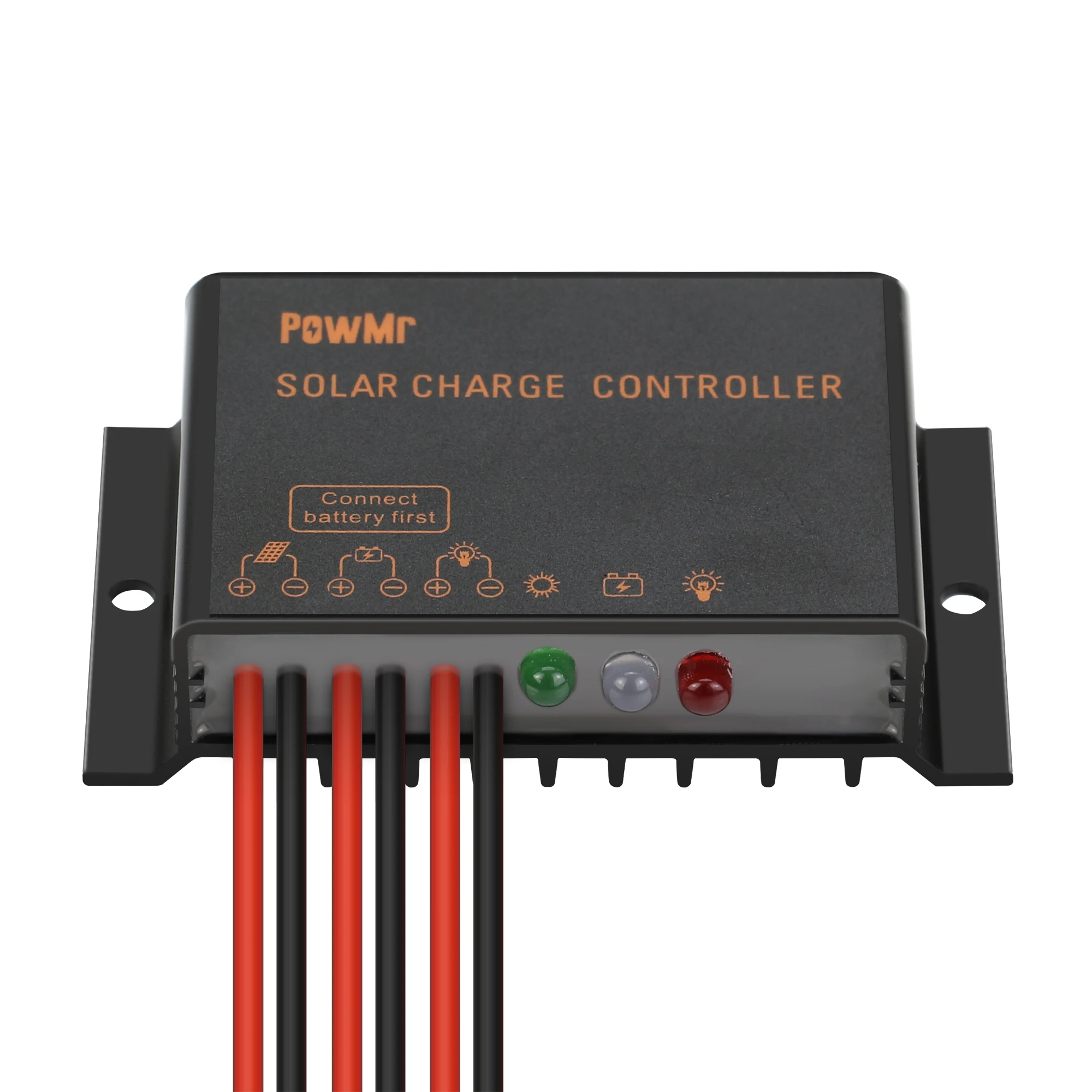

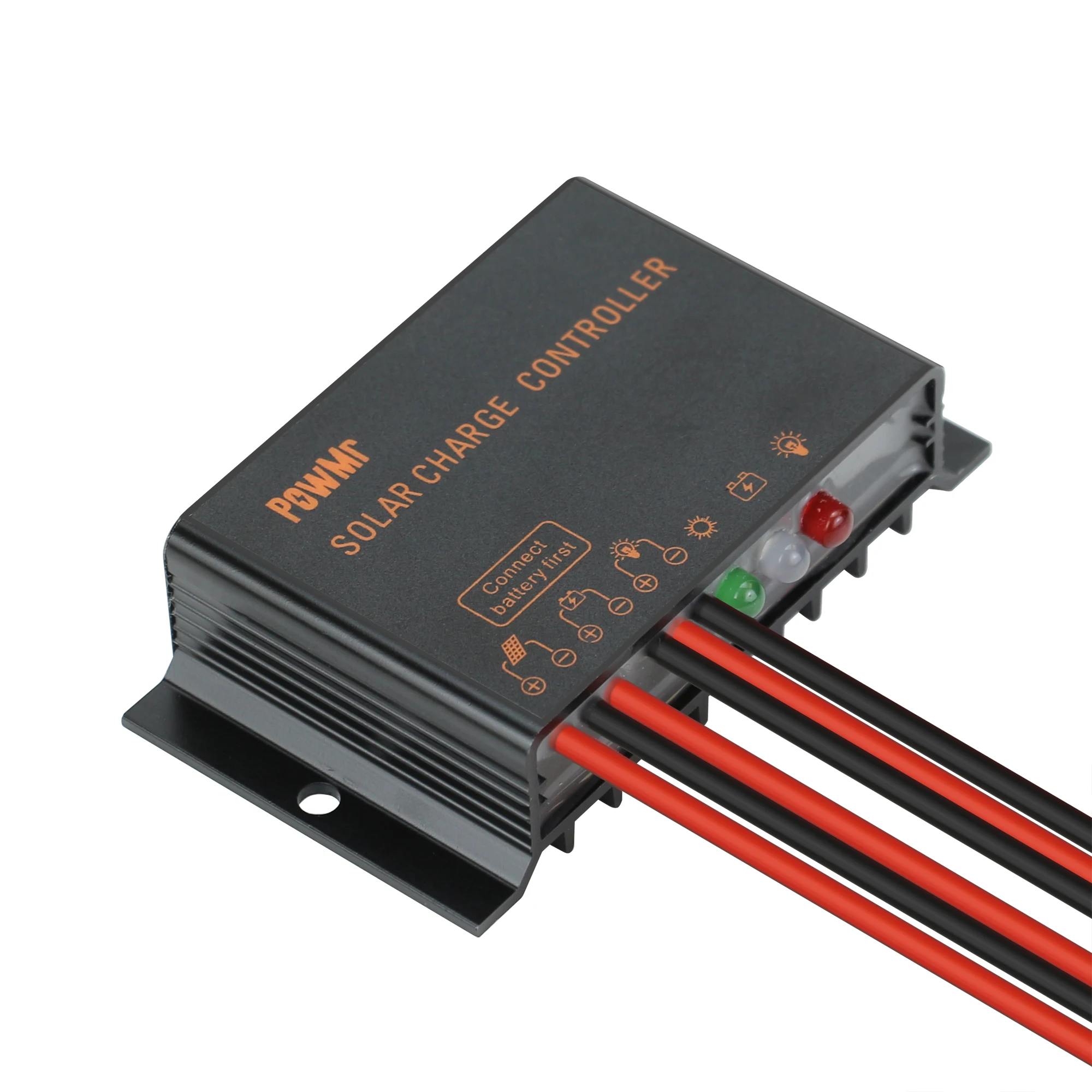

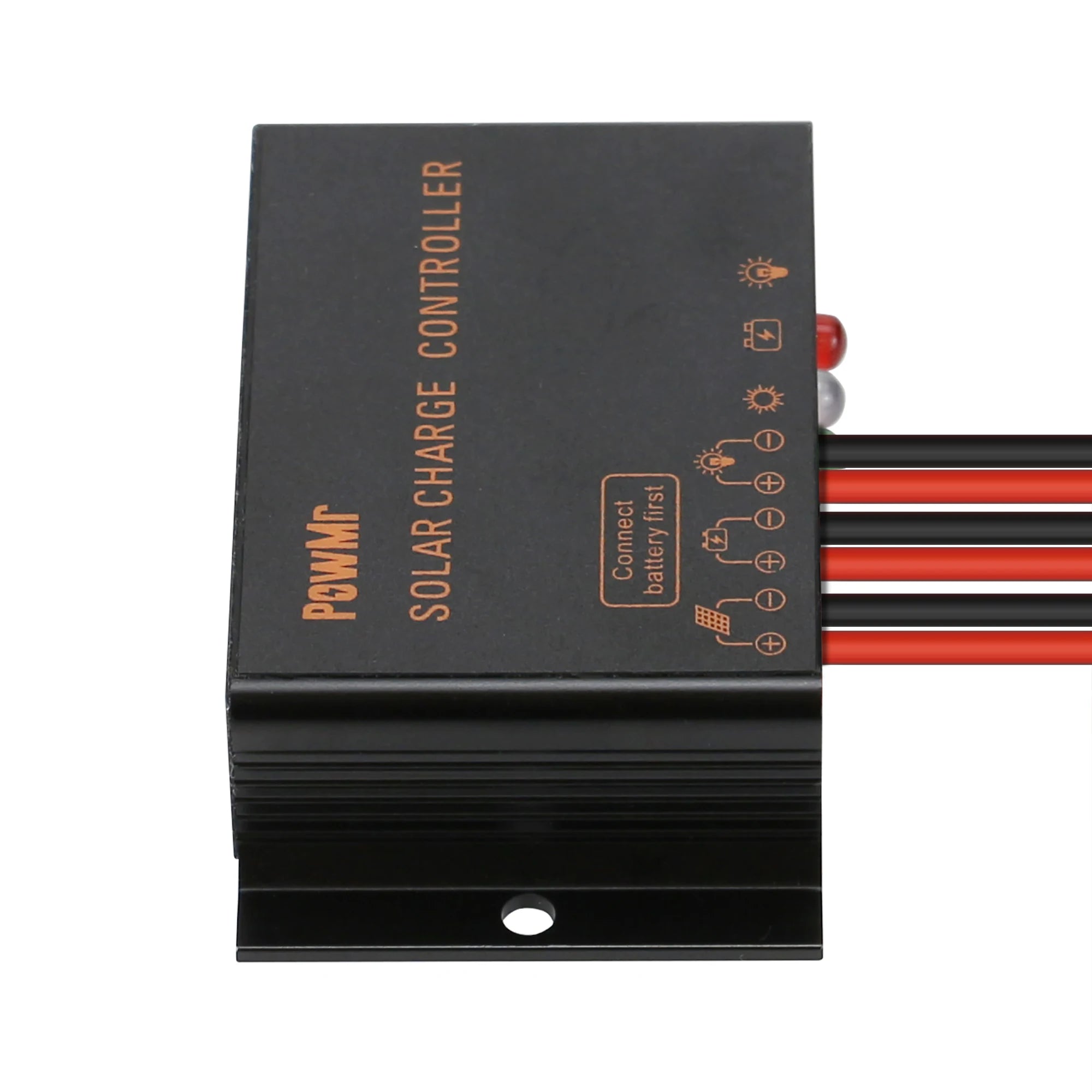

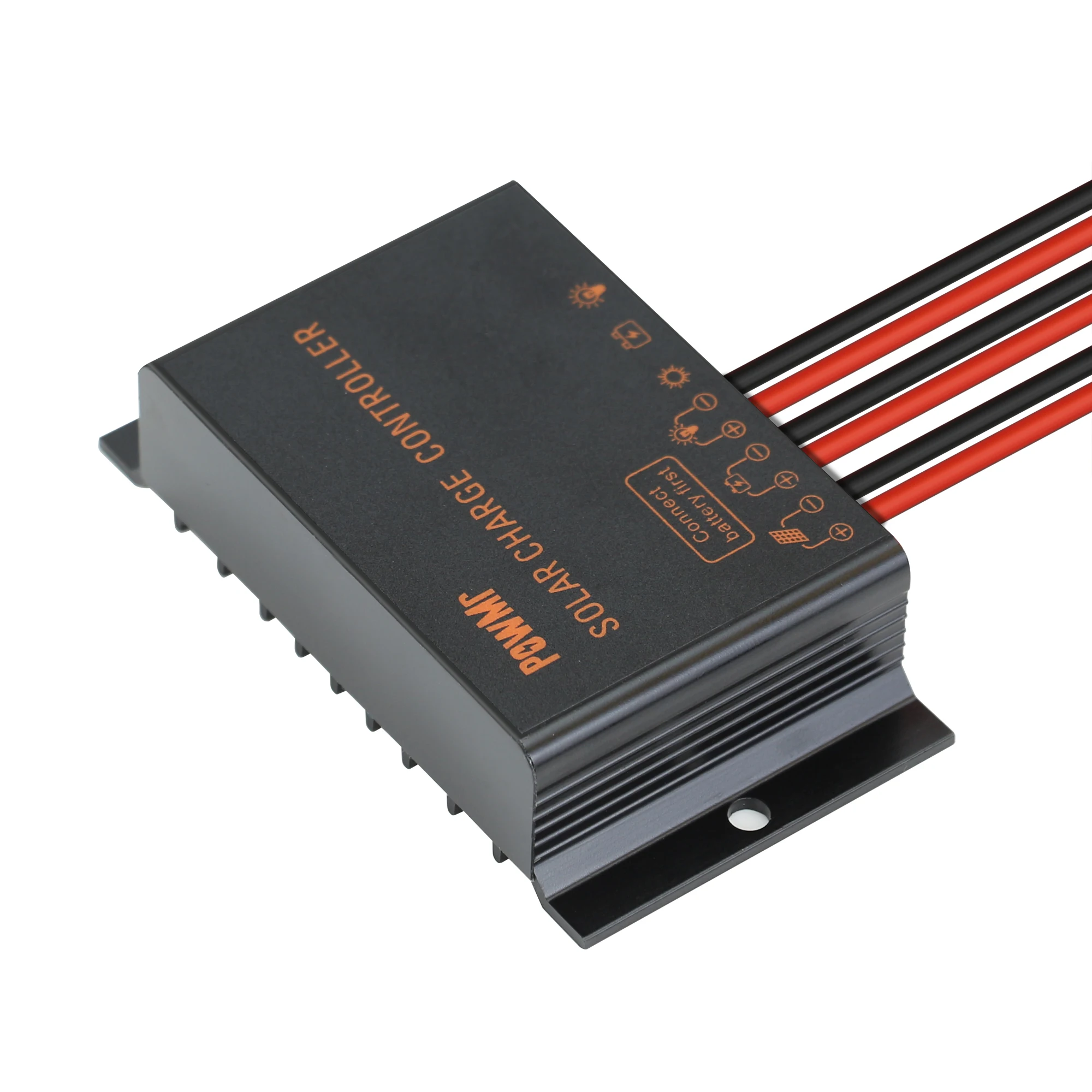

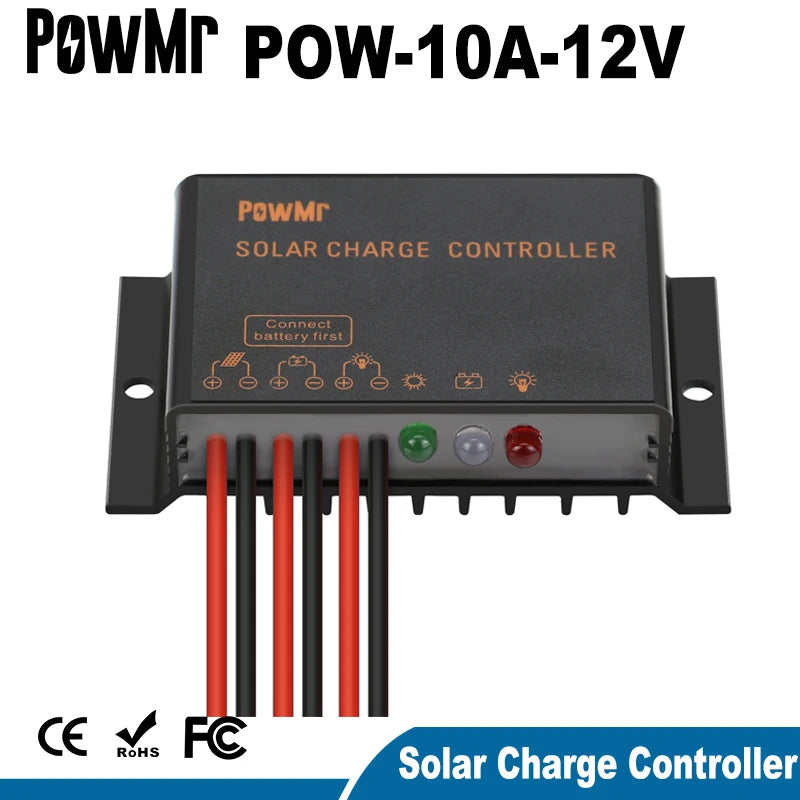

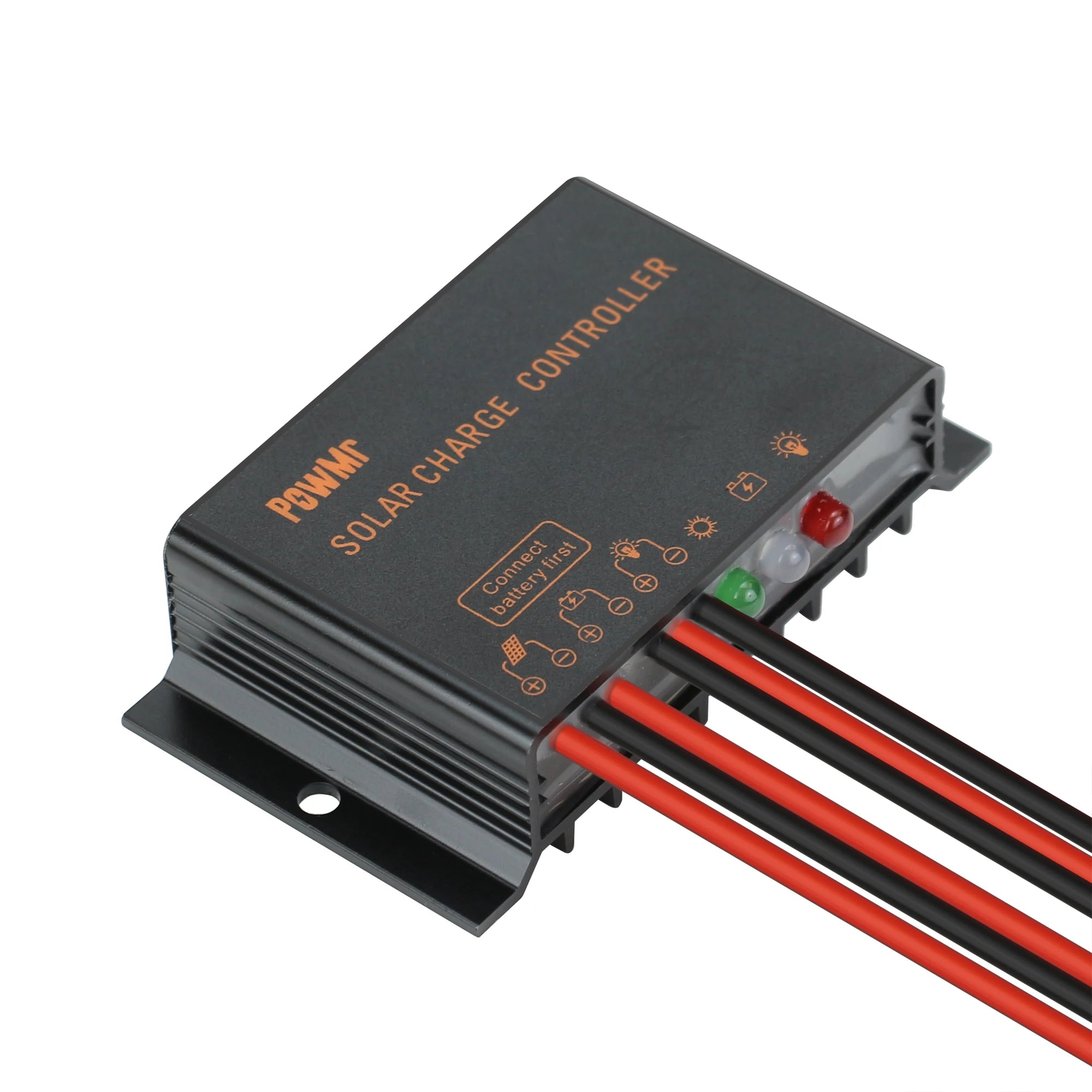

Item Picture:
